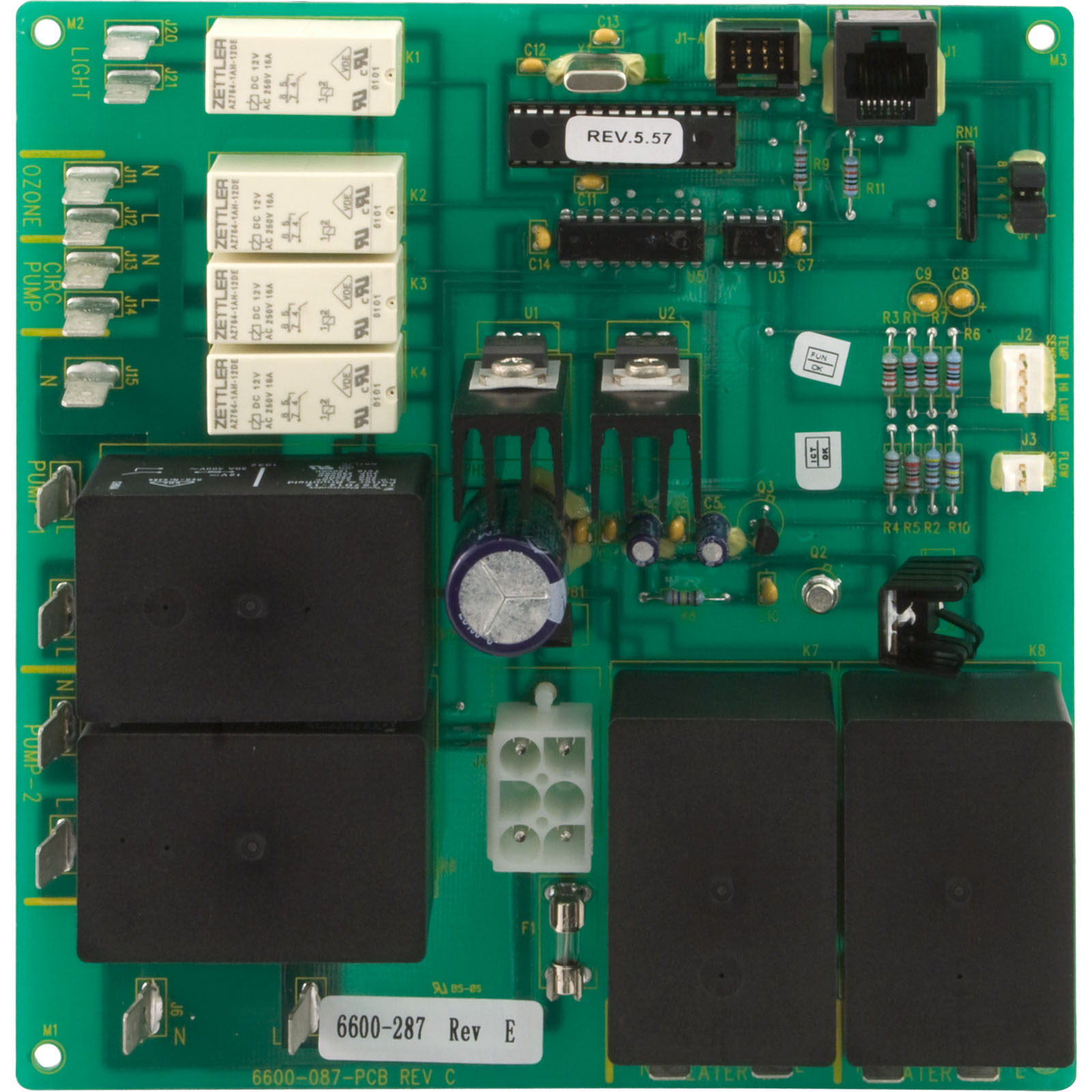

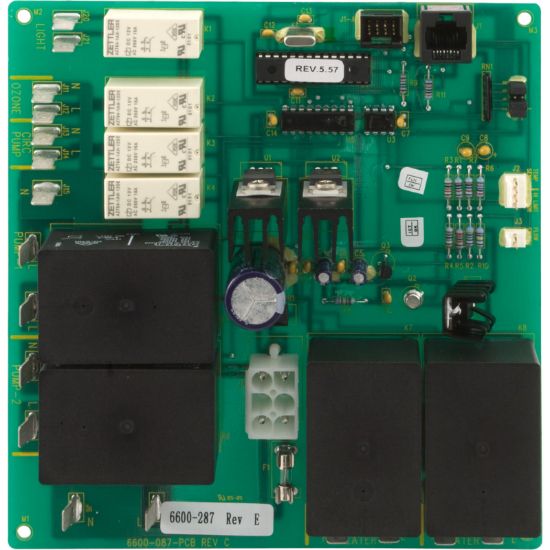

6600-287 PCB Sundance LX-15

Replaces Sundance 6600-087.

Used on the following spas:
Sundance 2002 Palermo & Bahia, 2006-2007 Burlington, 2007+ Hartford & Hawthorne, and 2008+ Burlington models without circulation pump, as well as LX-15 systems.

This board will NOT operate a circulation pump. If the spa has a circulation pump, then use 59-455-2008.

Jumper settings are as follows:
Jumper 1 - On - 15A, Off - 50A
Jumper 2 - On - 2 pumps, Off - 1 pump
Jumper 3 - Used along with Jumper 2
Jumper 4 - On - Celsius temp display, Off - Fahrenheit temp display
To enable
