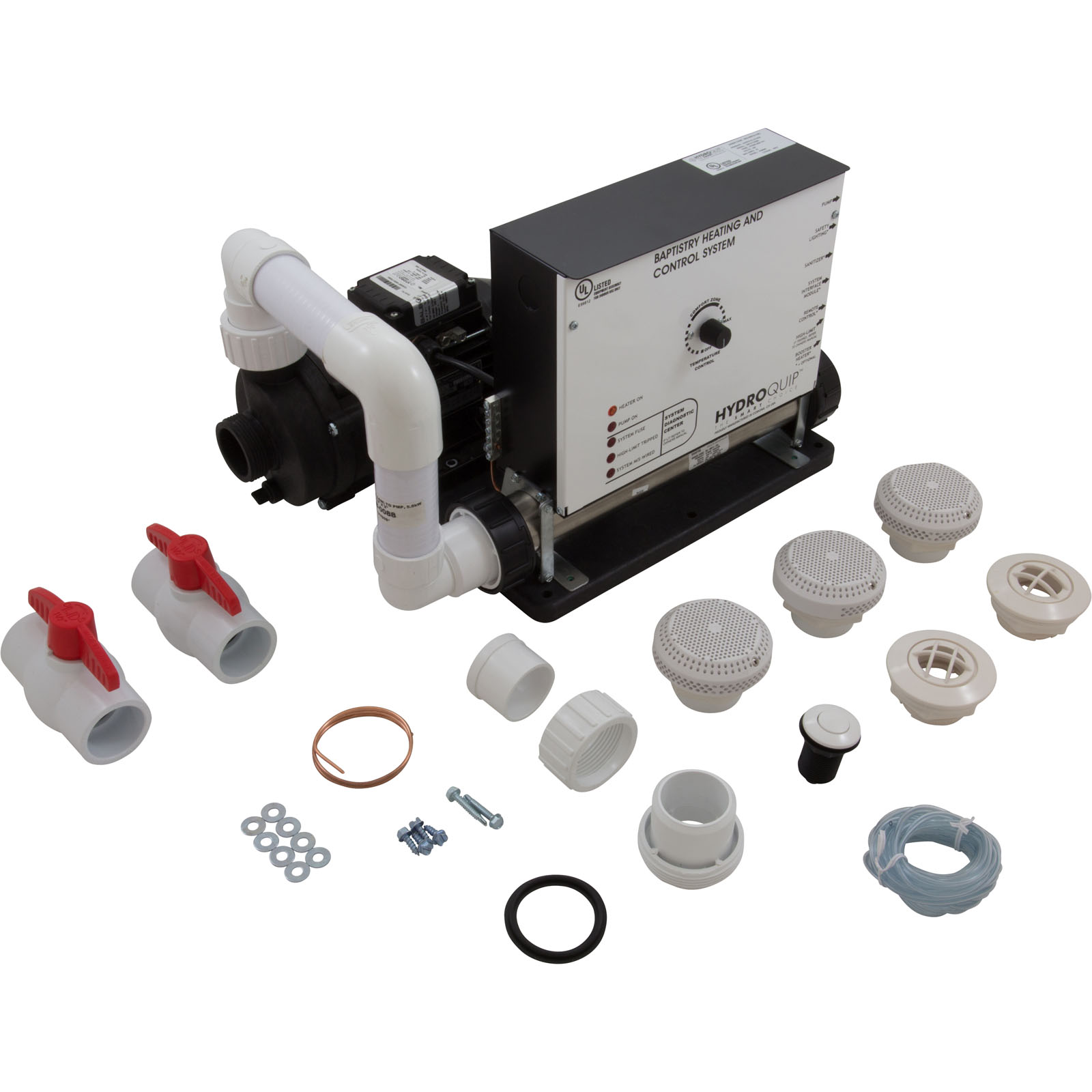

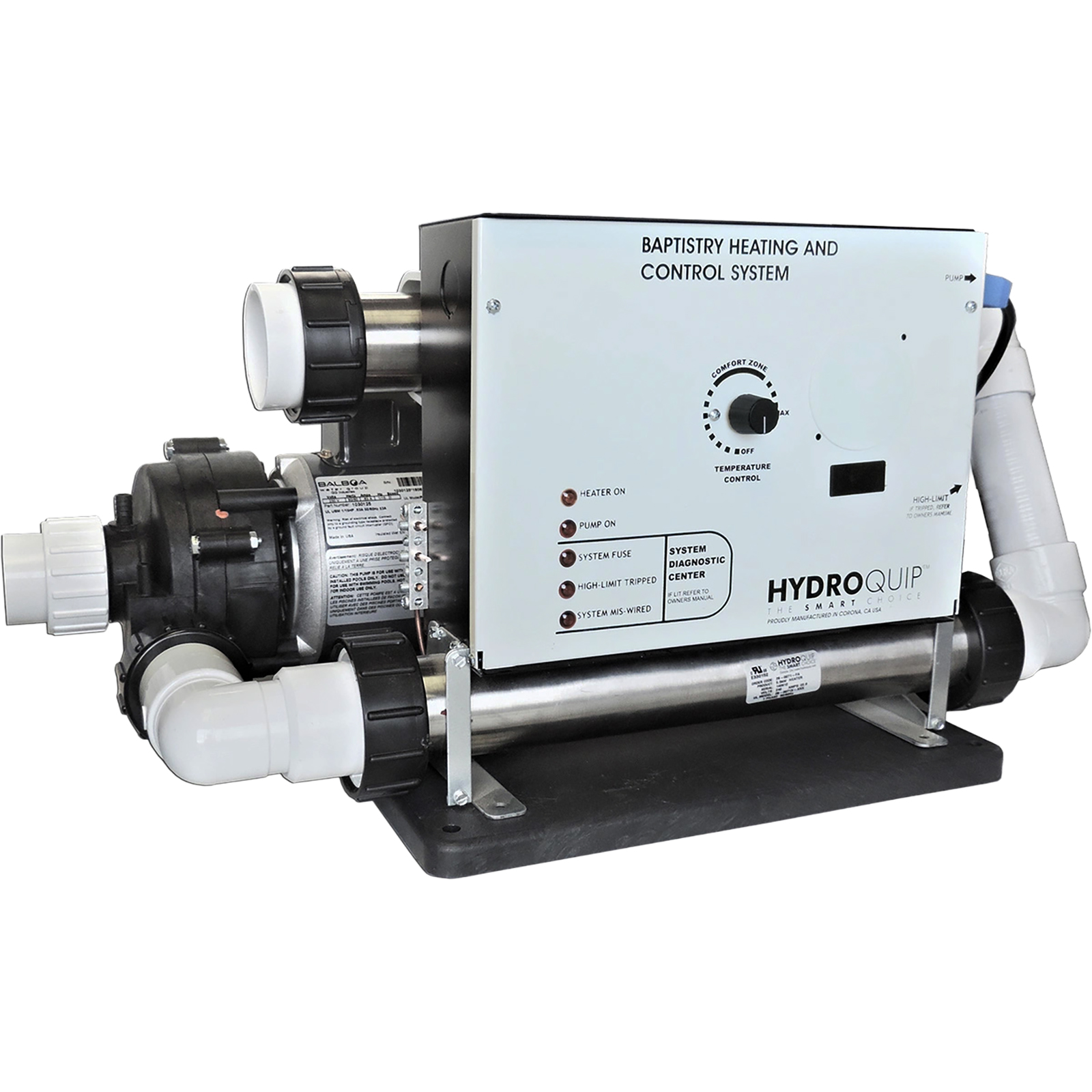

BES-6005 Baptismal System H-Q BES-600511.0 kW 230v0.75hpw/o Timer

Manufacturer Part Number: BES-6005

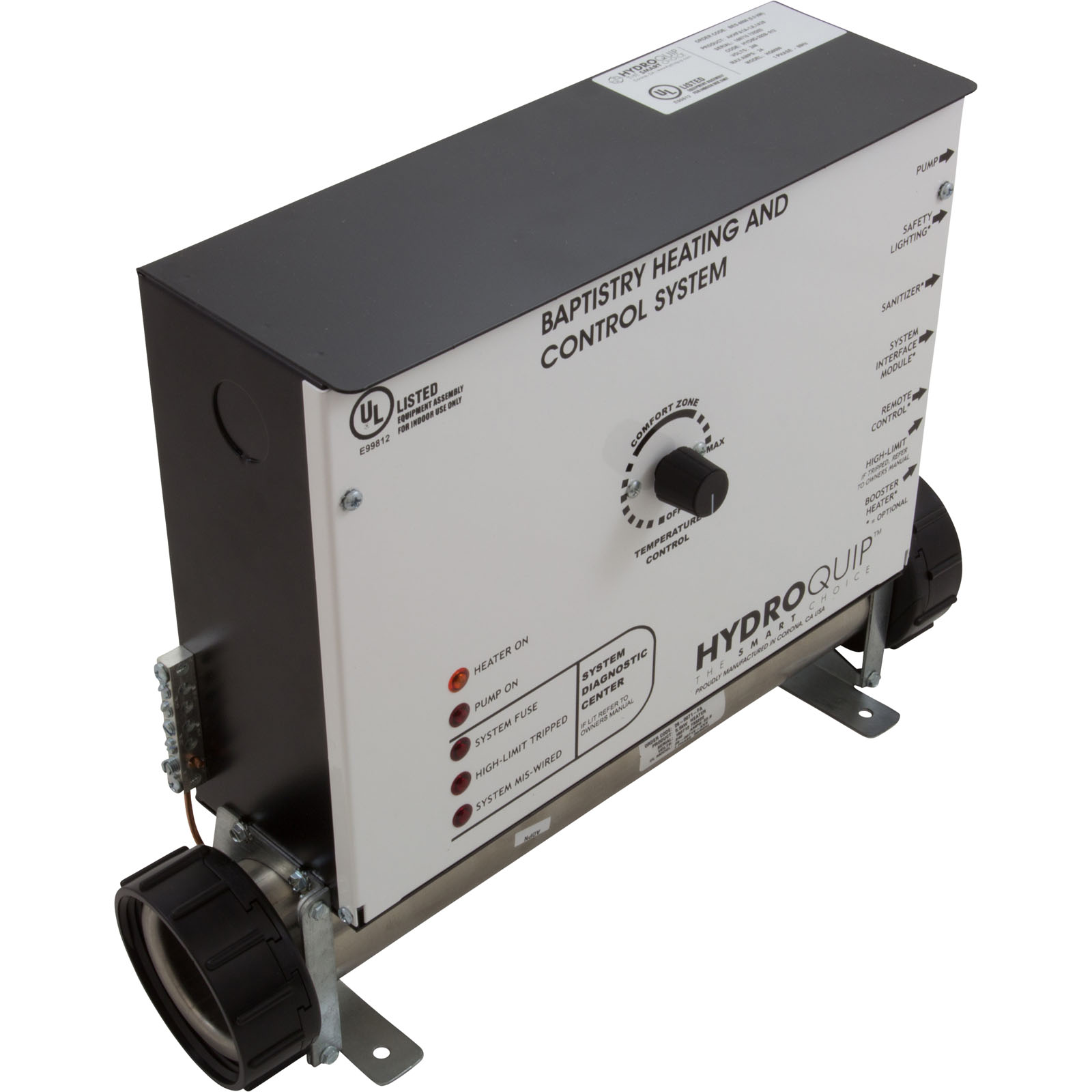

Baptismal Equipment System Standard Features: 11KW Heater in 304SS Housing 115V Pump 24hr Timer with Mode Switch Full Range Thermostat High Limit Protected Pressure Switch Activated Base Mounted Exclusive Features: “VDS” Visual Diagnostics Heater “ON” Indicator Light Detailed Installation Manual Detailed Owners Manual Detailed Wiring Diagram STANDARD OPTIONS BY MODEL MODEL BES6000T BES6005T Voltage 240* 240* Pump Voltage 120V 120V Pump Speed 1 1 Heater Wattage 5.5kW 11kW Timer YES YES Sanitizer 120V 120V Light Optional Optional APPROVAL LISTINGS: UL LISTED, INDOOR ONLY, UL1563 ELECTRICAL SPECIFICATIONS: SINGLE PHASE, *4-WIRE SERVICE, 60HZ MINIMUM SPACE REQUIRED: 15”H X 33”W X 17”D TOTAL AMP DRAW: BES6000T 36A, CIRCUIT BREAKER SIZE 40 TOTAL AMP DRAW: BES6005T 59A, CIRCUIT BREAKER SIZE 70 SHIPPING DIMENSIONS: 23”H X 21”W X 8”D (All Systems) SHIPPING WEIGHT: BES6000T 32.21lbs., BES6005T 36.5lbs. WARRANTY: 1 YEAR LIMITED WARRANTY
