PE34065RC Control Intermatic Multi-Wave PE34065RC5 Circuit 80A Base

Some heat pumps can consume between 40 and 60 Amps worth of power therefore, it may be necessary to have a higher amperage breaker base to accommodate heat pumps. Combine the features of the PE653RC Multi-Wave Control System with the convenience of the PE30000 80 Amp Intermatic Panel and create a powerful PE30065RC wireless control system kit for any pool or spa installation. The PE30000 Series Panel includes an eight position 80 Amp breaker base to accommodate a variety of different equipment loads and two mechanism slots to accommodate the vast array of mechanisms Intermatic has to offer. In addition, there is a low voltage raceway for low voltage control lines (i.e. actuators, sensors, etc…), four décor knockouts for GFCIs and switches, and a convenient side knockout for an outdoor receptacle.
Order a PE34065RC which includes a P4043ME mechanism and two PE24VA actuators and remotely control any pool and spa combination. With this addition, you can now switch both water valves and heater thermostat settings between your pool and spa with a click on your wireless control.

Included:

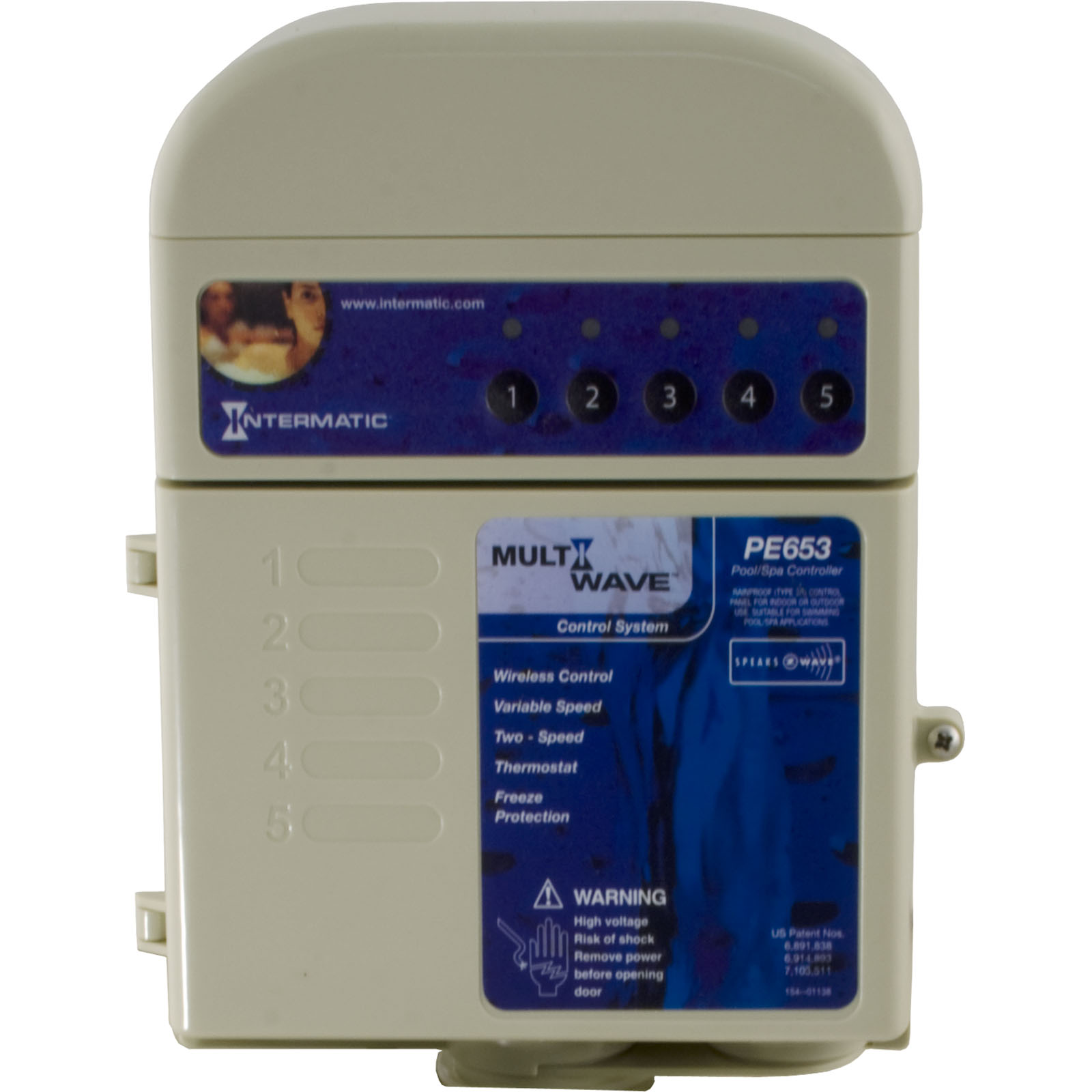

• Multi-Wave Control System (PE653RC)
• Owner’s Manual
• Three AA Batteries
• Small Flat Head Screwdriver
• Equipment Labels

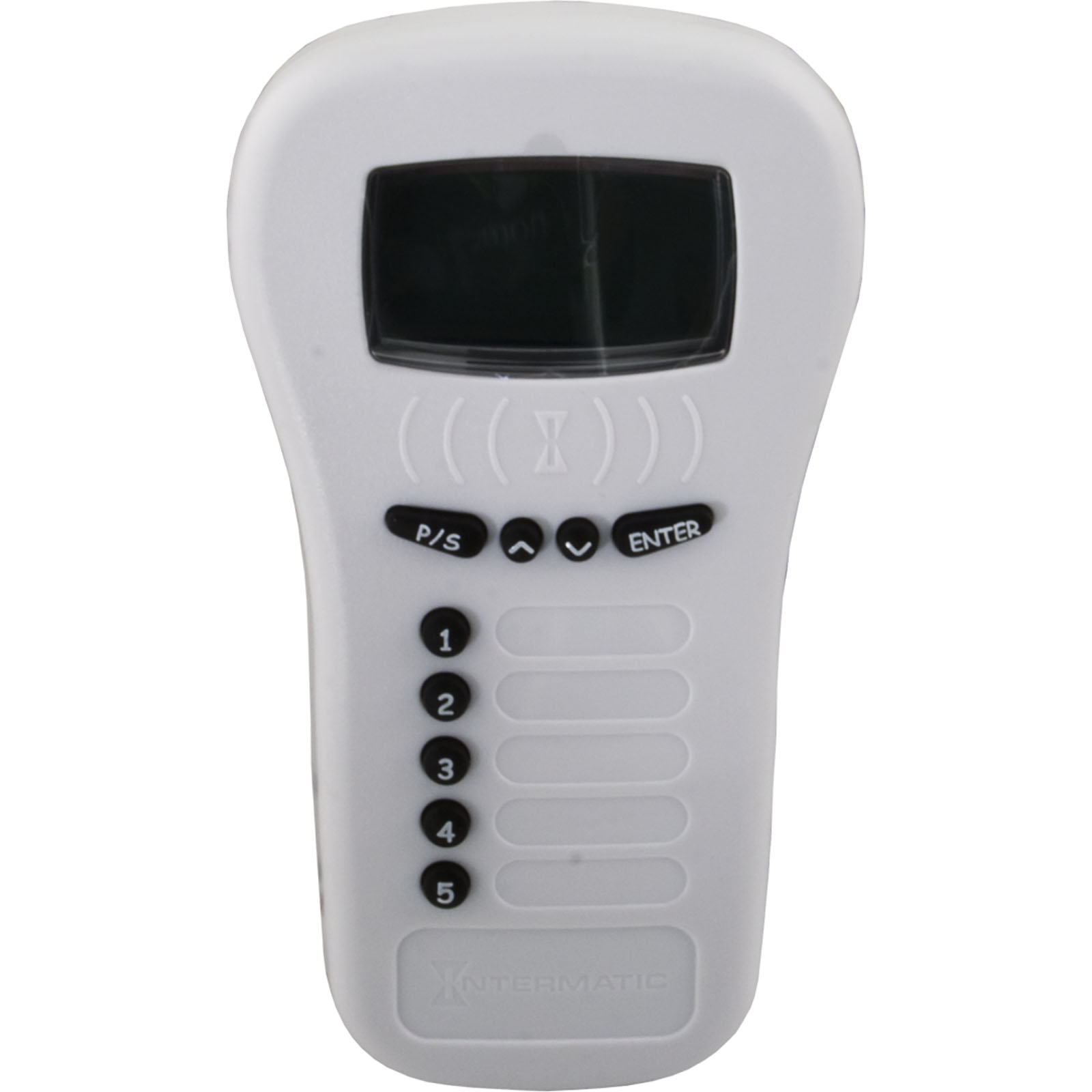

• Hand Held (PE953) Transmitter
• Water Sensor (PA122) with Hose Clamp

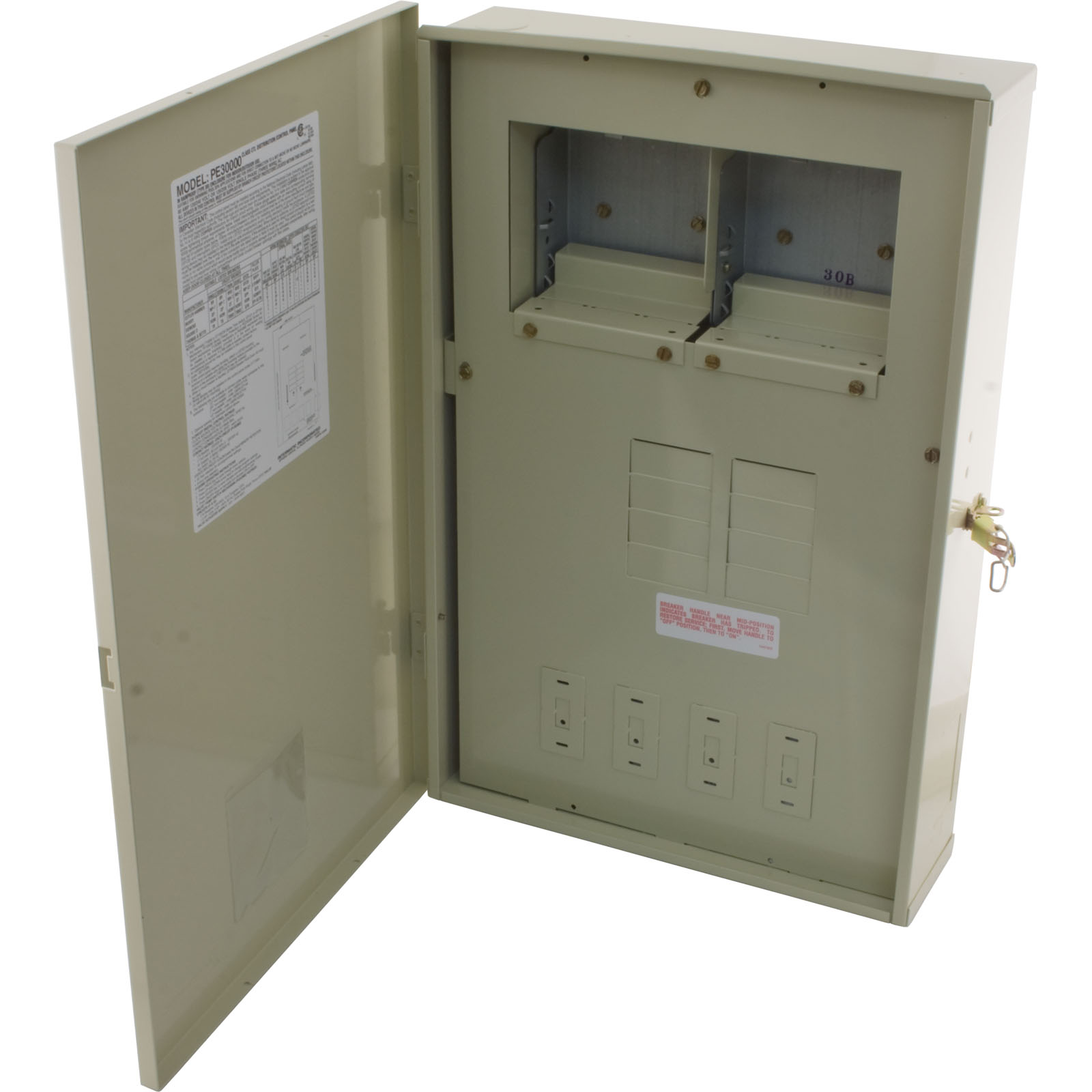

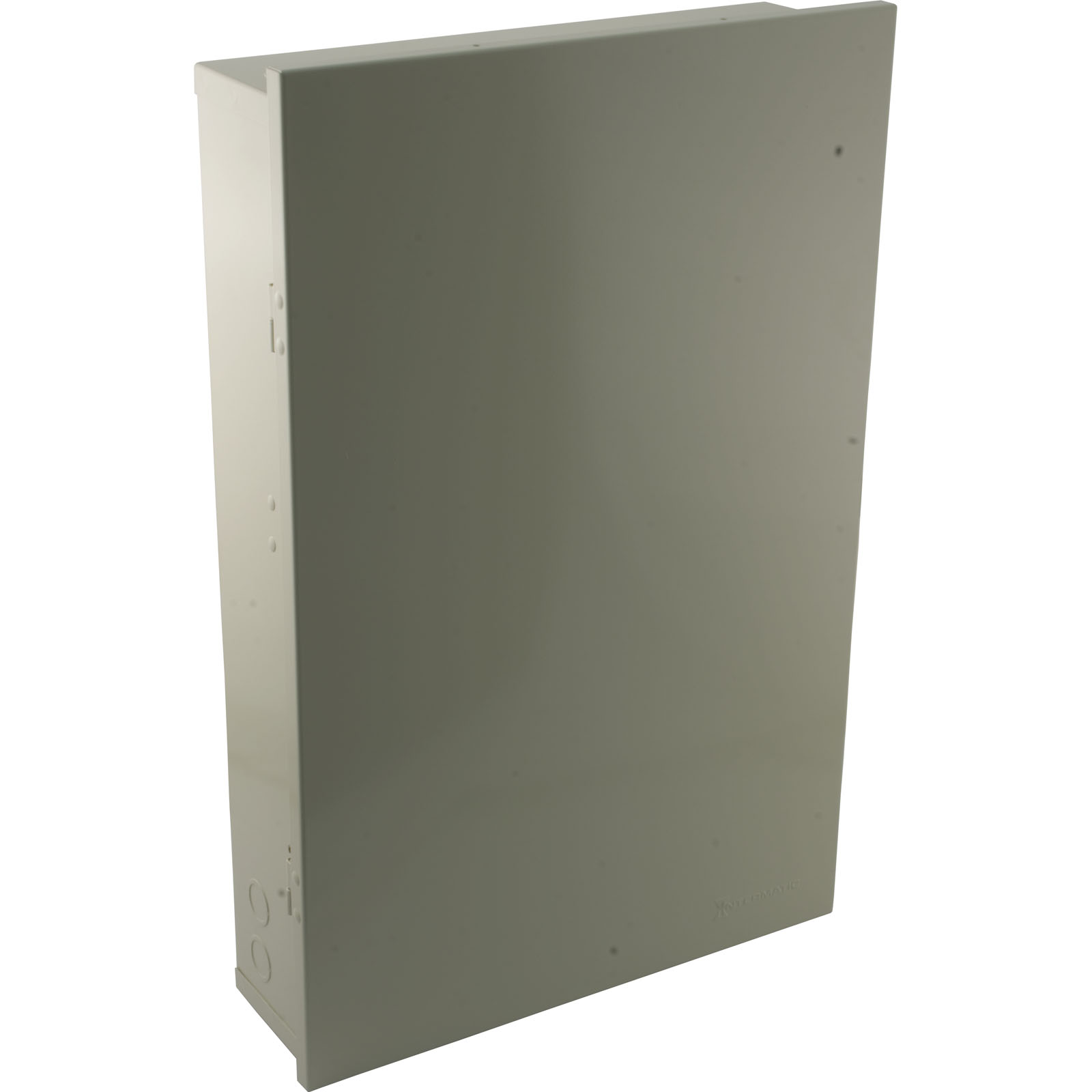

• PE30000 Enclosure w/80 Amp Base
• P4043ME Actuator Controller (PE34065RC only)
• (2) PE24VA Water Valve Actuators (PE34065RC only)

Specifications:

Enclosure & Control: NEMA 3R rated for Indoor/Outdoor installations 0.048 in. steel with light beige finish 22 in. (55.9 cm) H x 143 .4 in. (37.5 cm) W x 41 .4 in. (10.8 cm) D
Enclosure Knockouts: Two 1.09 in. diameter through holes, six combination 1 .2 . 3 .4 in. knockouts, 2 combination 3 .4, 1, 11 .4 in. knockouts, four 1 .2 in. knockouts on the bottom. Two combination 1 .2 . 3 .4 in. knockouts on the left side and four combination 1 .2 . 3 .4 in. knockouts, two combination 3 .4 . 1 in. on the back. One knockout 13 .4 x 23 .4 in. on the right side for mounting switches or GFCI.
Panel Rating: 80 Amp 120, 240 VAC or 120, 208 VAC single phase
Shipping Weight: 5.4 lbs (2.3 kg)
Agency Approval: CSA/C-US

Ratings:

Control Supply: 120, 240 VAC (NO Neutral wire required), 50/60 Hz, 5-Watts Maximum
Circuit #1: 20 Amp Resistive (17 FLA, 80 LRA) 120, 240 VAC 50/60 Hz
Circuits #2 thru #5: 15 Amp Resistive (10 FLA, 60 LRA) 120, 240 VAC 50/60 Hz
