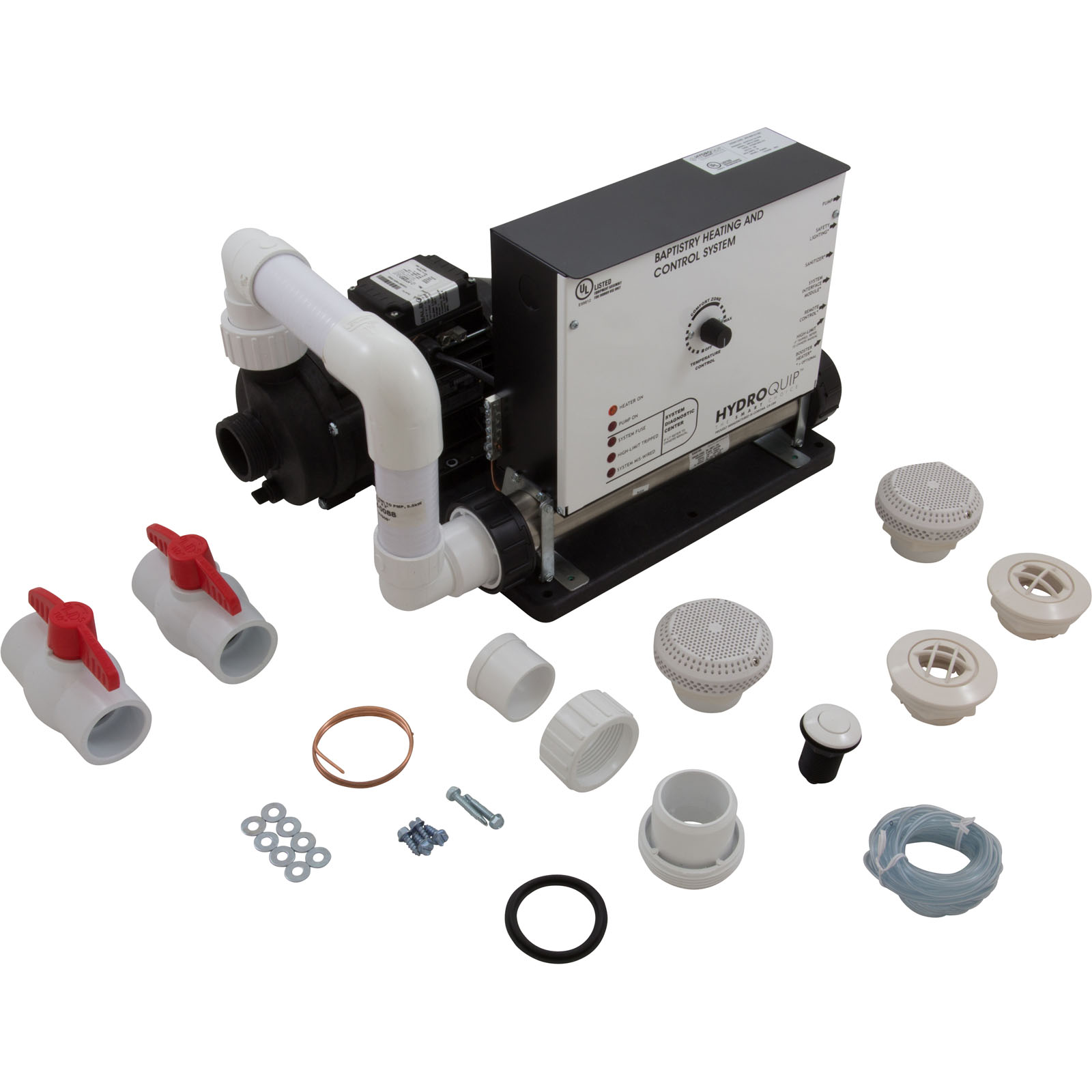

BES-6000 Baptismal System H-Q BES-6000 5.5 kW 230v0.75hpw/o Timer

Manufacturer Part Number: BES-6000

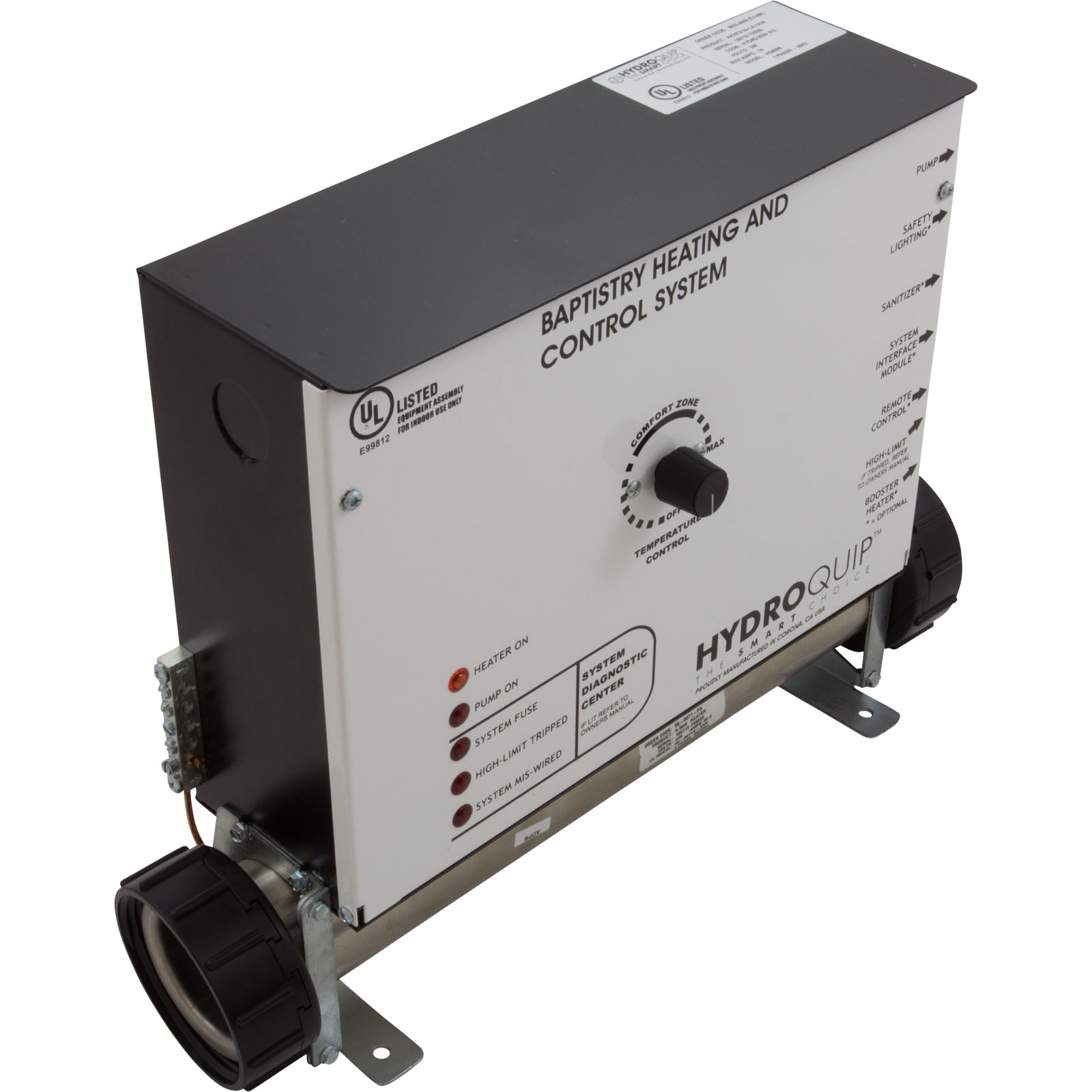

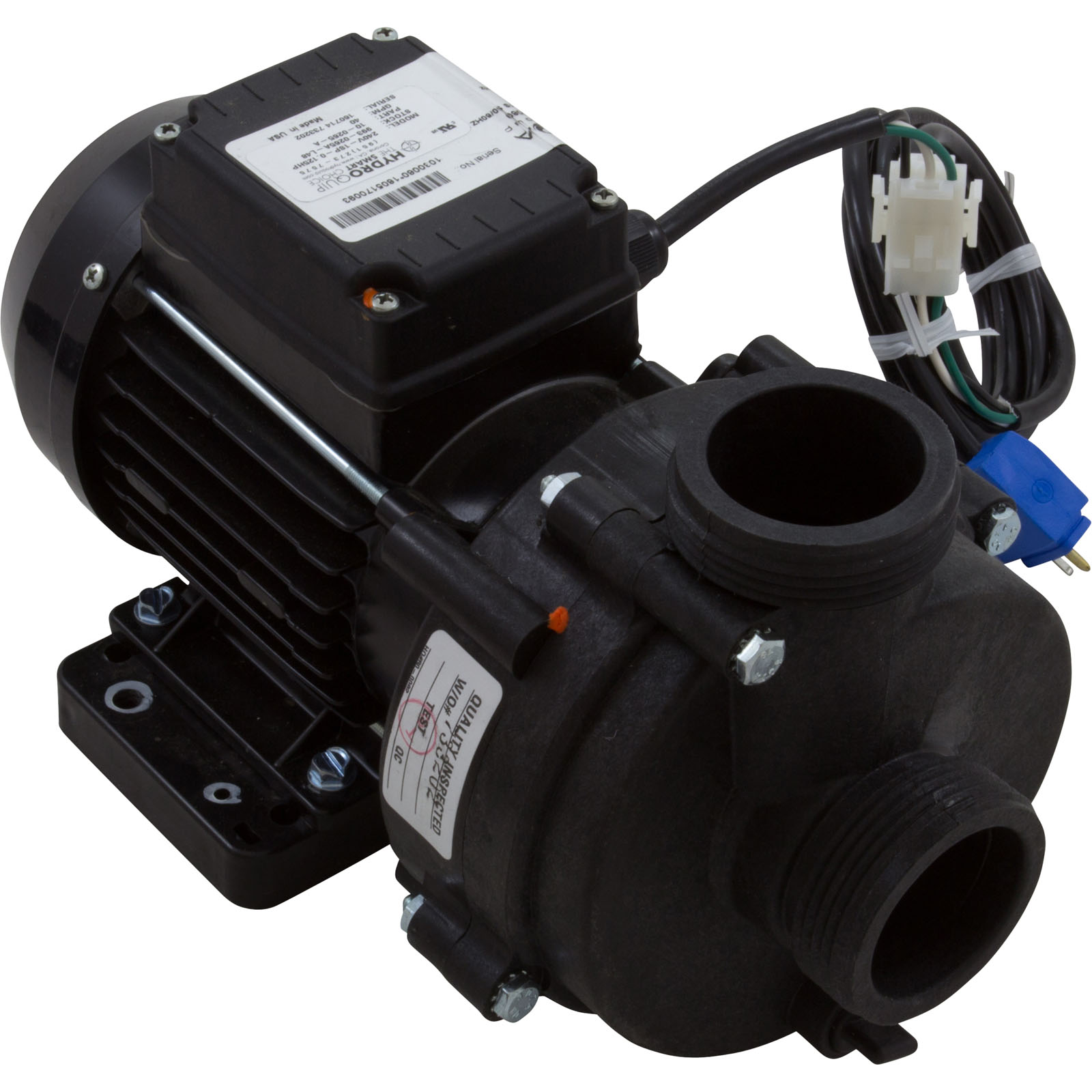

Baptismal Equipment System Standard Features: 5.5kW Heater in 304SS Housing 3/4HP, 115V Pump Full Range Thermostat High Limit Protected Pressure Switch Activated Base Mounted Exclusive Features: &ldquo&rdquo Visual Diagnostics Heater &ldquo&rdquo Indicator Light Detailed Installation Manual Detailed Owners Manual Detailed Wiring Diagram STANDARD OPTIONS BY MODEL MODEL BES6000T BES6005T Voltage 230* 230* Pump Voltage 115V 115V Pump HP 3/4 3/4 Pump Speed 1 1 Heater Wattage 5.5kW 11kW Timer YES YES Sanitizer 115V 115V Light Optional Optional APPROVAL LISTINGS: UL LISTED, INDOOR ONLY, UL1563 ELECTRICAL SPECIFICATIONS: SINGLE PHASE, *4-WIRE SERVICE, 60HZ MINIMUM SPACE REQUIRED: 15&rdquo X 33&rdquo X 17&rdquo TOTAL AMP DRAW: BES6000T 24A, CIRCUIT BREAKER SIZE 40 TOTAL AMP DRAW: BES6005T 48A, CIRCUIT BREAKER SIZE 70 SHIPPING DIMENSIONS: 23&rdquo X 21&rdquo X 8&rdquo (All Systems) SHIPPING WEIGHT: BES6000T 32.21lbs., BES6005T 36.5lbs. WARRANTY: 1 YEAR LIMITED WARRANTY

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
