Control Gecko S-Class P1OzL 4.0kW 115v/230vTSC-18/K-18

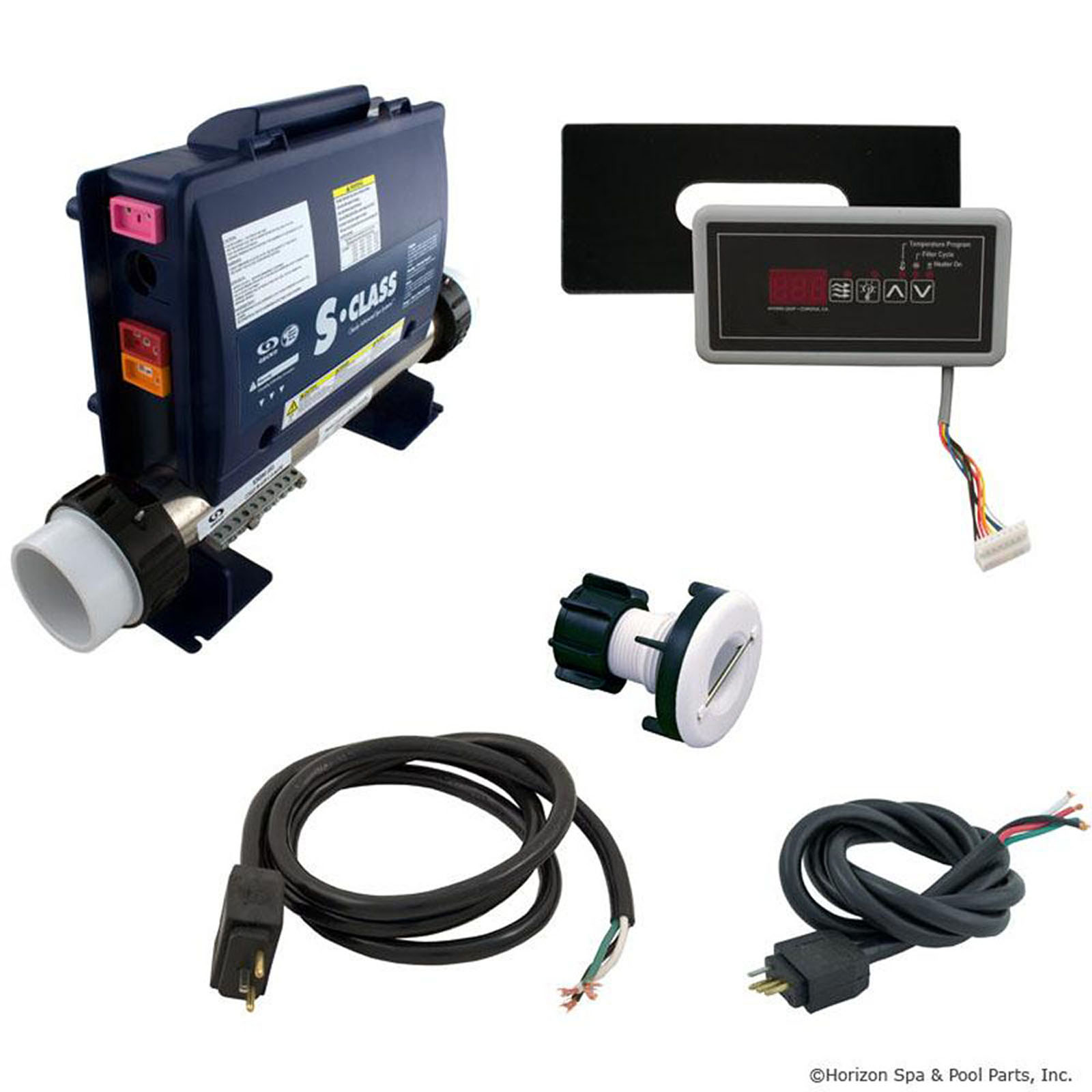

This S-Class spa control system provides all the accessories needed for an installation requiring a single pump, an ozonator, and light:

• TSC-18/K-18 Control Panel, Small Rectangle, 4-Button, 58-337-1550
• TSC-18/K-18 control panel dimensions 2-1/2ΓÇ¥ x 5ΓÇ¥
• Control Panel Adapter Plate, Small
• 2- spd pump cord,115/230v, 48ΓÇ¥, JJ ΓÇôMini, 14/4 AWG
• Ozone Cord,115/230v, 48ΓÇ¥, JJ-Mini, 18/3 AWG
• 2ΓÇ¥x 15ΓÇ¥ Flow Thru heater, 1.0/4.0kW 115/230v
• Temperature Sensor thermowell, 3/8ΓÇ¥
• Operation and installation manual
• Two-Year manufacturerΓÇÖs limited return and repair warranty

  Other features of this S-Class spa control include:

• Automatic time-out on all outputs
• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temp. accuracy within ┬▒ 1┬░F
• Filter cycle over temp protection
Control Box Dimensions



Height	Width	Depth
11-1/2"	14-1/4"	3-3/8"
