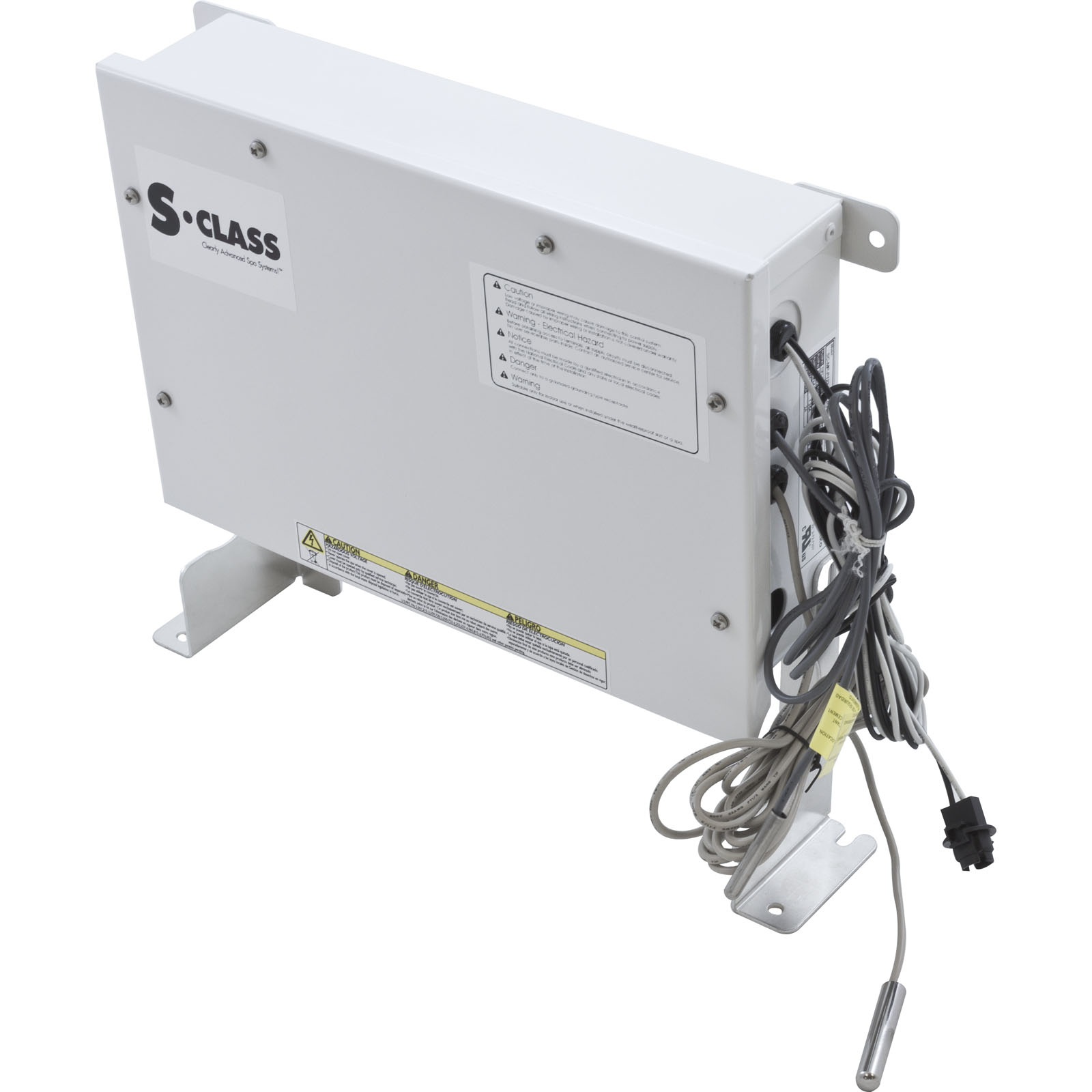

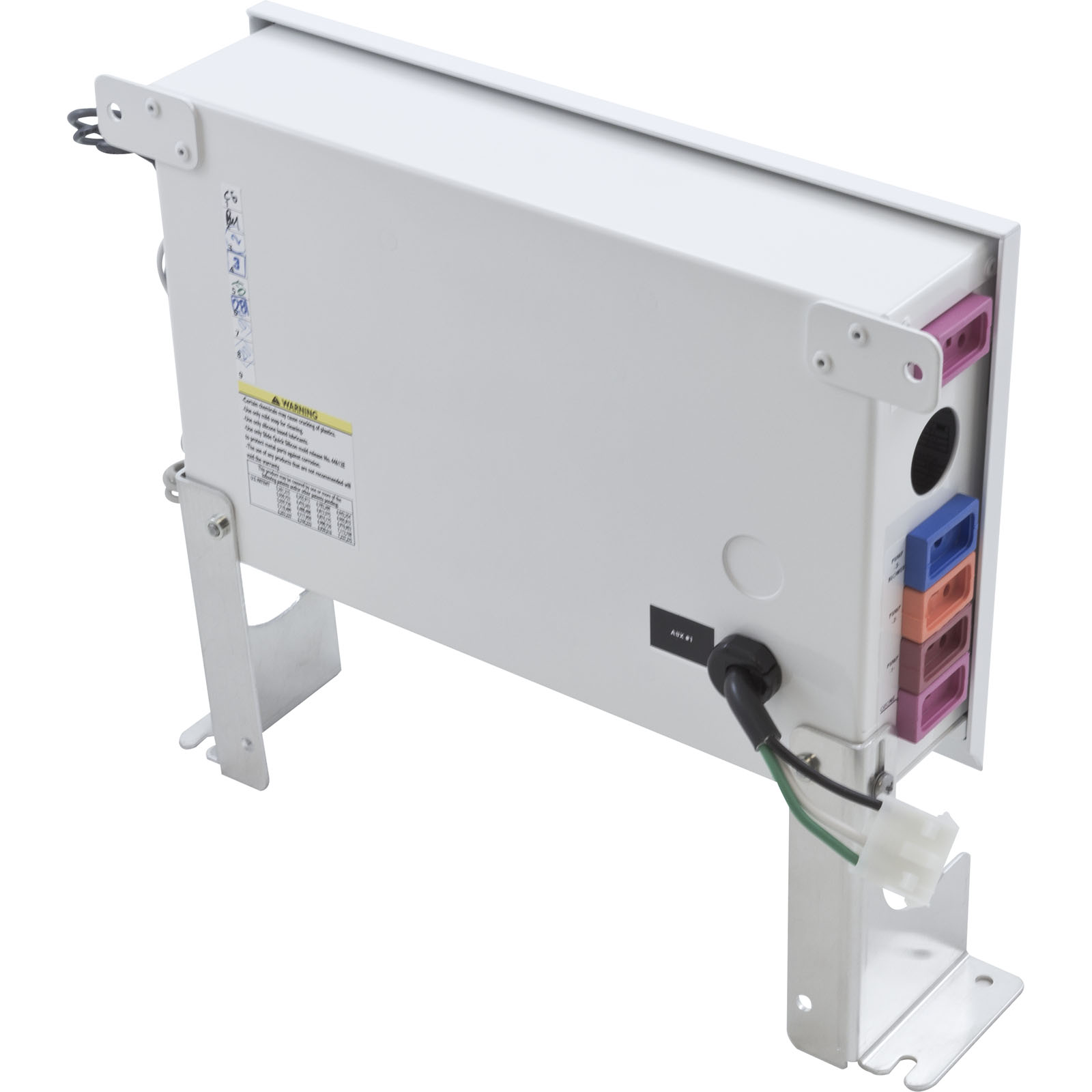

3-72-7107 Ctrl Gecko S-Class LA Spa P1P2P3Cp Oz Aux LH 115v/230v

Manufacturer Part Number: 3-72-7107

The Gecko S-Class is comparable to the Gecko in.ye-5 control sytem. Gecko S-Class series of spa controls presents versatility and compact size all in one package. This version is frequently used on LA Spas.  Among its many features: Automatic time-out on all outputs Sensor failure detection Ozone management Programmable filter cycles High-limit protection Pressure switch failure detection Current limiting option Smart Winter Mode Temp. accuracy within ± 1°F Filter cycle over temp protection This S-Class control box only contains circuits fitted with JJ Mini style receptacles that will operate the following equipment: Pump 1, 2-Spd, 115/230v Pump 2, 1-Spd, 115/230v Pump 3 or Blower, 115/230v Circ Pump, 115/230v Ozone, 115/230v Light 12v See the tech tips tab for notes about compatible topsides.

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
