CtrlGecko M-ClassP1P2P3CPBlOzLtAc 5.5kW 115v/230v

Dimensions of control system:
Heater: 2” x 15”
Box Height 15”
Box length 13”
Box Width 4”

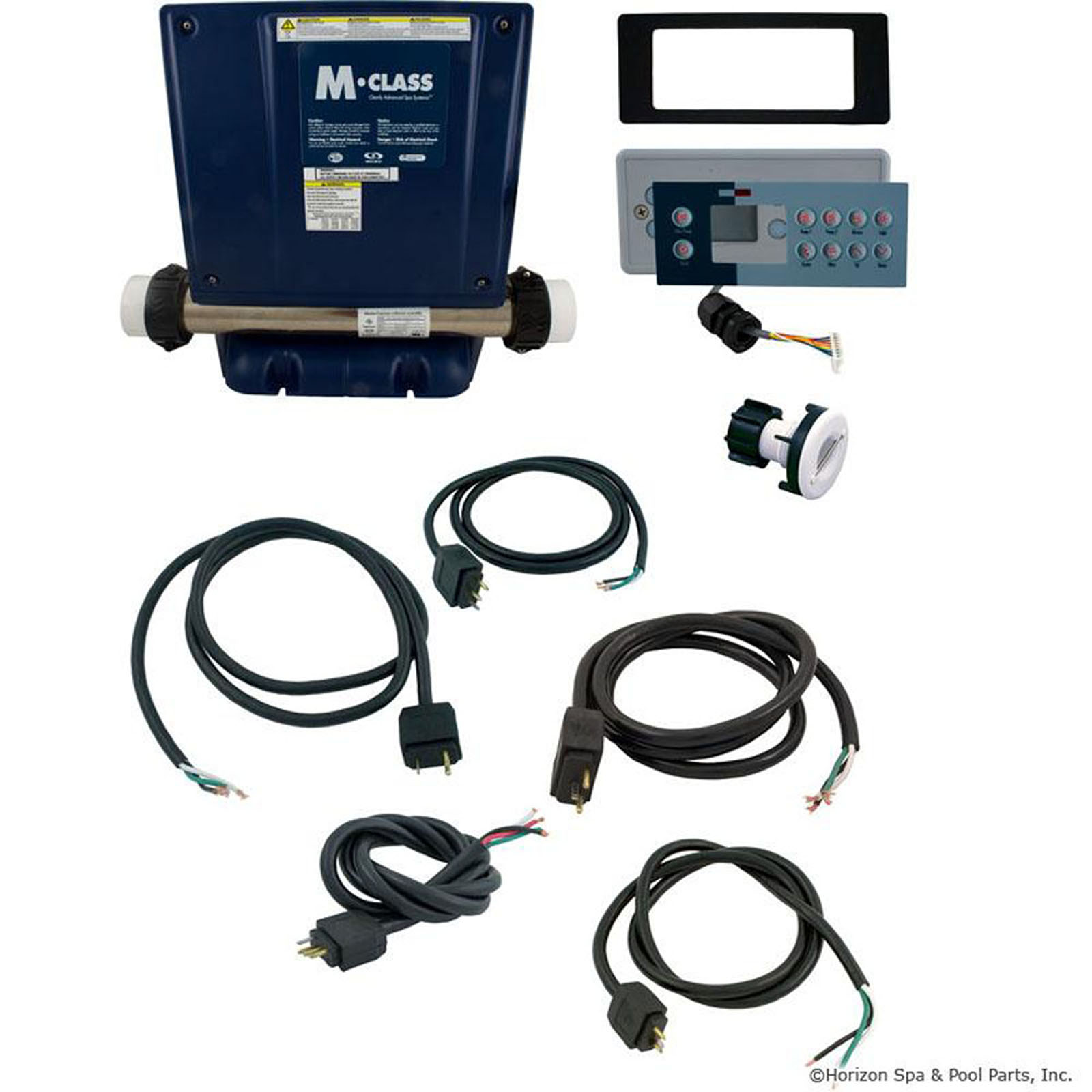

The M-Class spa control system provides all the accessories needed for an installation requiring (2) 2-spd pumps, a single speed pump, a circ pump, an air blower, an ozonator, and a light:

• TSC-4/K-4 Control Panel, Large Rectangle, LCD, 10-Key, 10ft cord
• TSC-4/K-4 control panel dimensions 3-1/4” x 7”
• Control Panel Adapter Plate, Large
• (2)2- spd pump cord,115/230v, 48”, JJ –Mini, 14/4 AWG
• 1-spd pump cord, 115/230v, 48”, JJ-Mini, 14/3 AWG
• Blower cord, 115/230v, 48”, JJ-Mini, 18/3 AWG
• Circulation Pump cord, 115/230v, 48”, JJ-Mini, 18/3 AWG
• Ozone Cord,115/230v, 48”, JJ-Mini, 18/3 AWG
• 2”x 15” Flow Thru heater, 5.5kW 230v
• Temperature Sensor thermowell, 3/8”
• Operation and installation manual
• Two-Year manufacturer’s limited return and repair warranty

Other features of this M-Class spa control include:

• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temperature accuracy within ± 1°F
• Overtemp mode protection
• Overtemp protection on filter cycle
• DJS-1 compatible (optional)
• Real time clock (optional)
