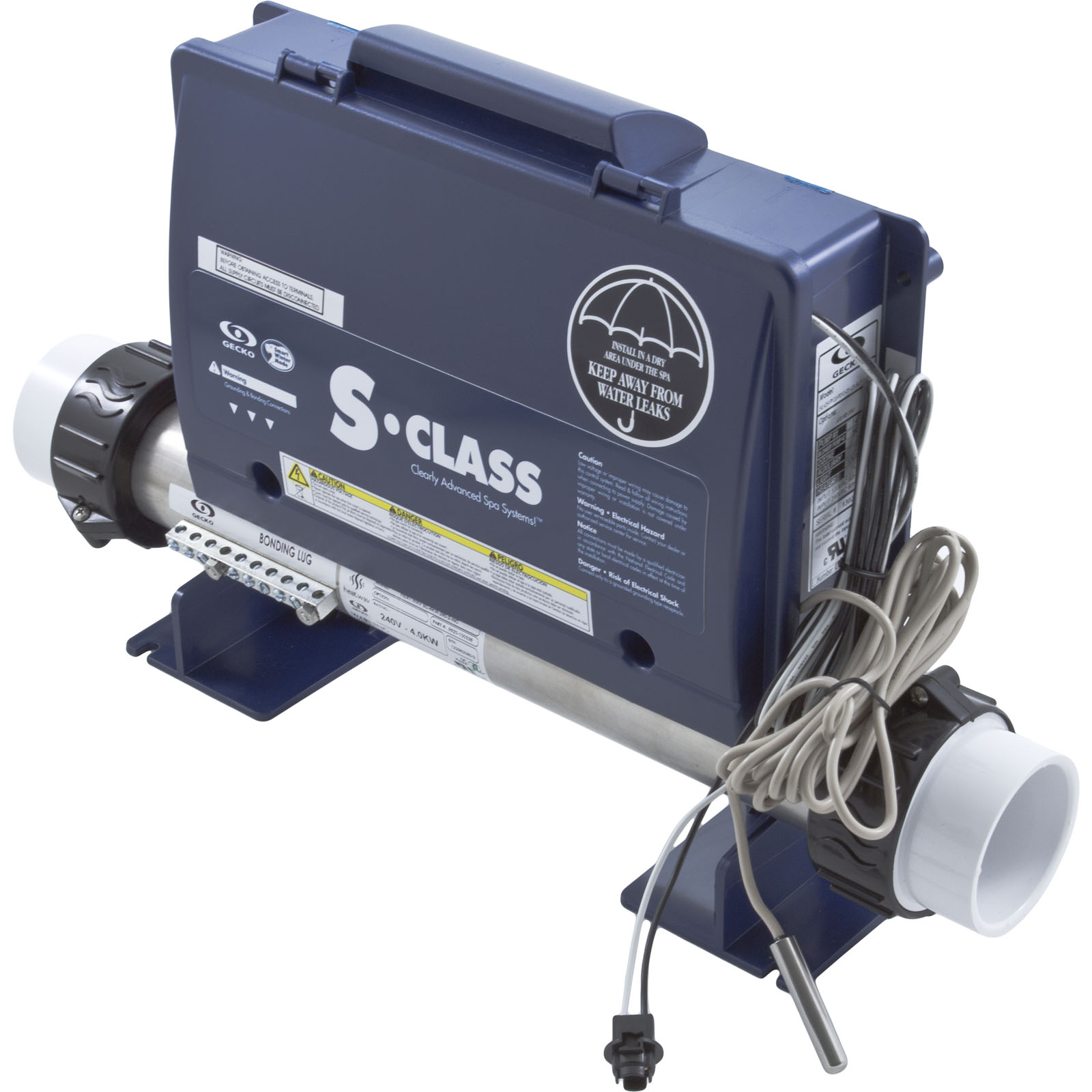

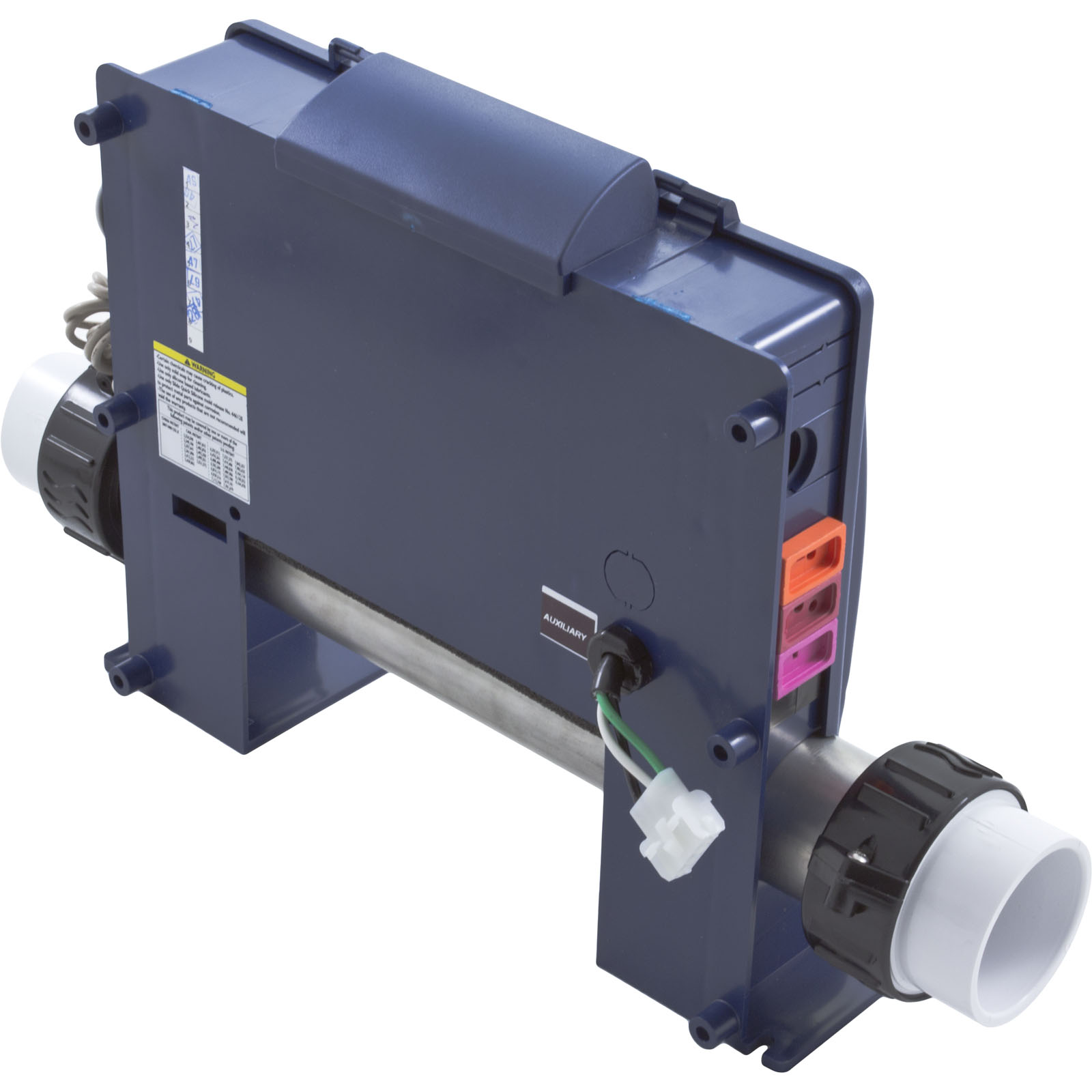

3-72-7079 CtrlGecko S-ClassP1P2OzL4.0kW115v/230vMini Molded

No cords are included with this replacement pack.

The Gecko S-Class is comparable to the Gecko in.ye-5 control system. Gecko S-Class series of spa controls presents versatility and compact size all in one package. Among its many features:

• Automatic time-out on all outputs
• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temp. accuracy within ± 1°F
• Filter cycle over temp protection

This S-Class control box only contains circuits fitted with Mini JJ style receptacles that will operate the following equipment:

• Pump, 1-Spd or 2-Spd, 115/230v
• Pump, 1-Spd, 115/230v
• Ozone, 115/230v
• Light 12v

Extended identical to: 3-72-7079 0201-100011 0201-201014 0202-205002 0202-205008 0202-205011 0202-205013 0202-205015 0202-205017 0202-205018 0202-205027 0202-205031 0202-205034 0202-205038 0202-205040 0202-205043 0202-205045 0202-205069 0202-205086 0202-205092 0202-205097 0202-205105 0202-205106 0202-205118 0202-205126 0202-205127 0202-205130 0202-205143 0202-205156 0202-205201 0202-205211 0202-205215 0202-207005 0202-207009 3-62-7017 3-72-7011 3-72-7013 3-72-7014 3-72-7023 3-72-7080 3-72-7086 3-72-7125 3-72-7131 3-72-7136 3-72-7140 3-72-7141 3-72-7144 3-72-7147

Control Box Dimensions



Height

Width

Depth
