P1353ME

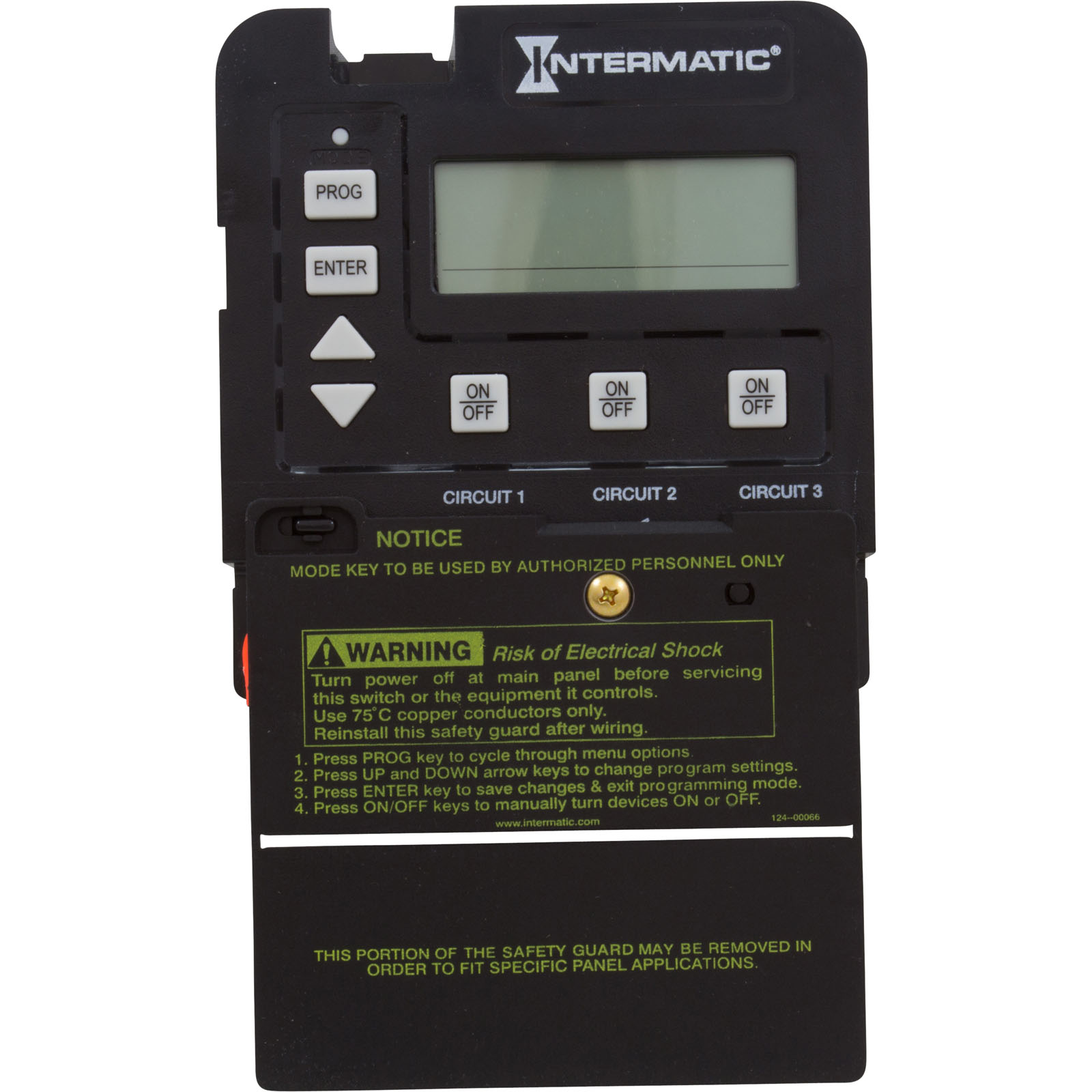

Three Circuit Clock Mechanism
Designed as an upgrade to your T100 Series time switch, the P1353ME mechanism can be installed into almost any Intermatic enclosure and has the ability to program up to three circuits. Choose between seven pre-programmed modes of operation, which include single speed pump or 2-speed pump/cleaner pump combinations. In addition, programmed modes that include auxiliaries can control pumps up to 3 HP as well as underwater, landscape and/or fountain lighting. Countdown and Override features allow cycle interruptuions when pool/spa service is required. All timing and protection associated with filter pump/cleaner pump combinations and two-speed pumps has already been integrated into the software. Title 20 Compliant.

Specifications:

• Three individual circuits
• Three ON/OFF events per day per circuit
• Seven pre-programmed modes for common pool & spa applications
• Input voltage 120, 208, 240 VAC
• Memory backup
• Freeze protection
• Heater protection (fireman switch)
• LCD readout
• Shipping Weight: 3 lbs (1.4 kg)
• Agency Approval: CSA/C-US

CONTACT RATINGS – EACH CIRCUIT, ALL MODES:

• 17 Amp Resistive, 120, 240 VAC, 50/60 Hz
• (20 FLA, 96 LRA), 120 VAC, 50/60 Hz
• (17 FLA, 80 LRA), 240 VAC, 50/60 Hz
• 5 Amp Tungsten, 120-240 VAC, 50/60 Hz
• 5 Amp Ballast, 120-240 VAC, 50/60 Hz
