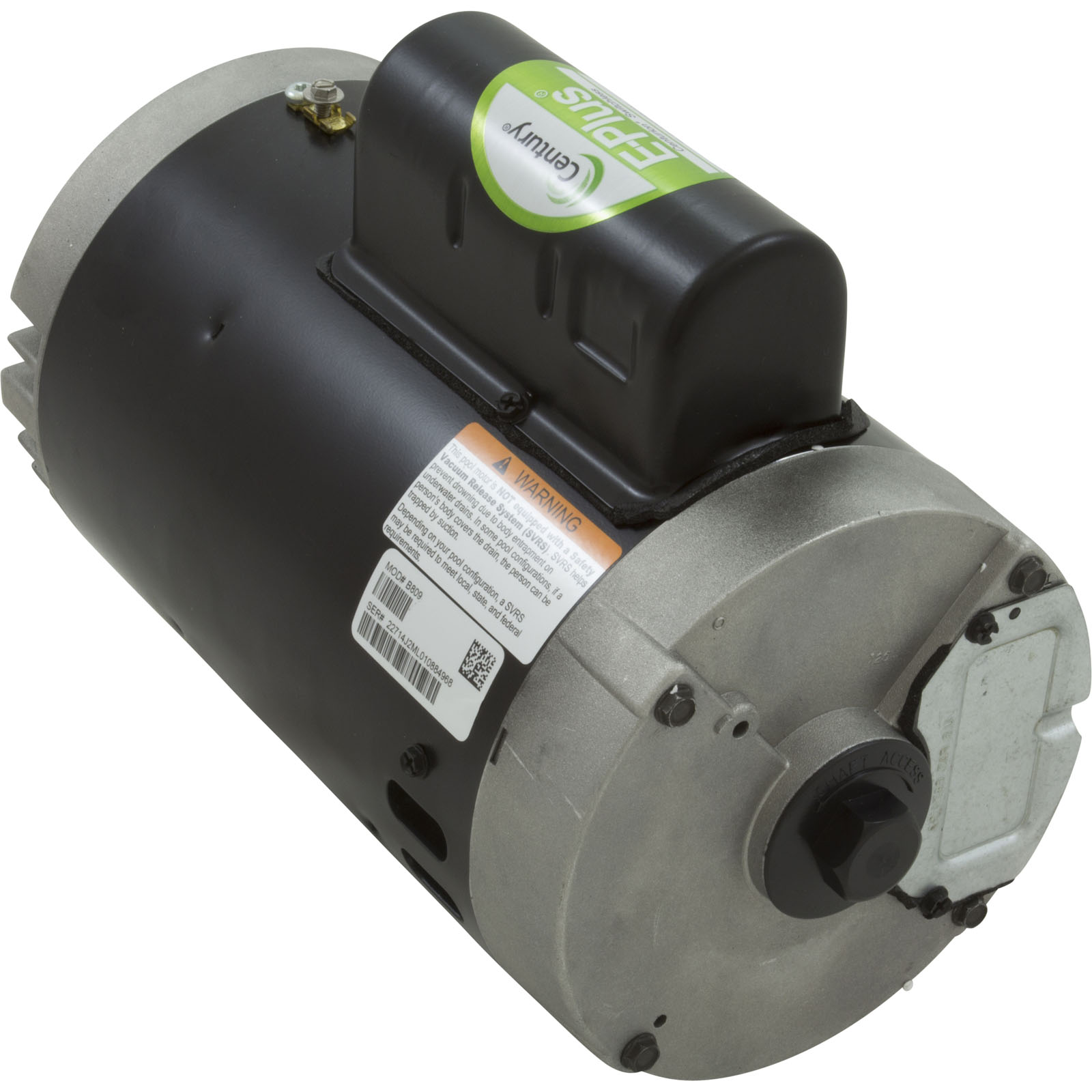

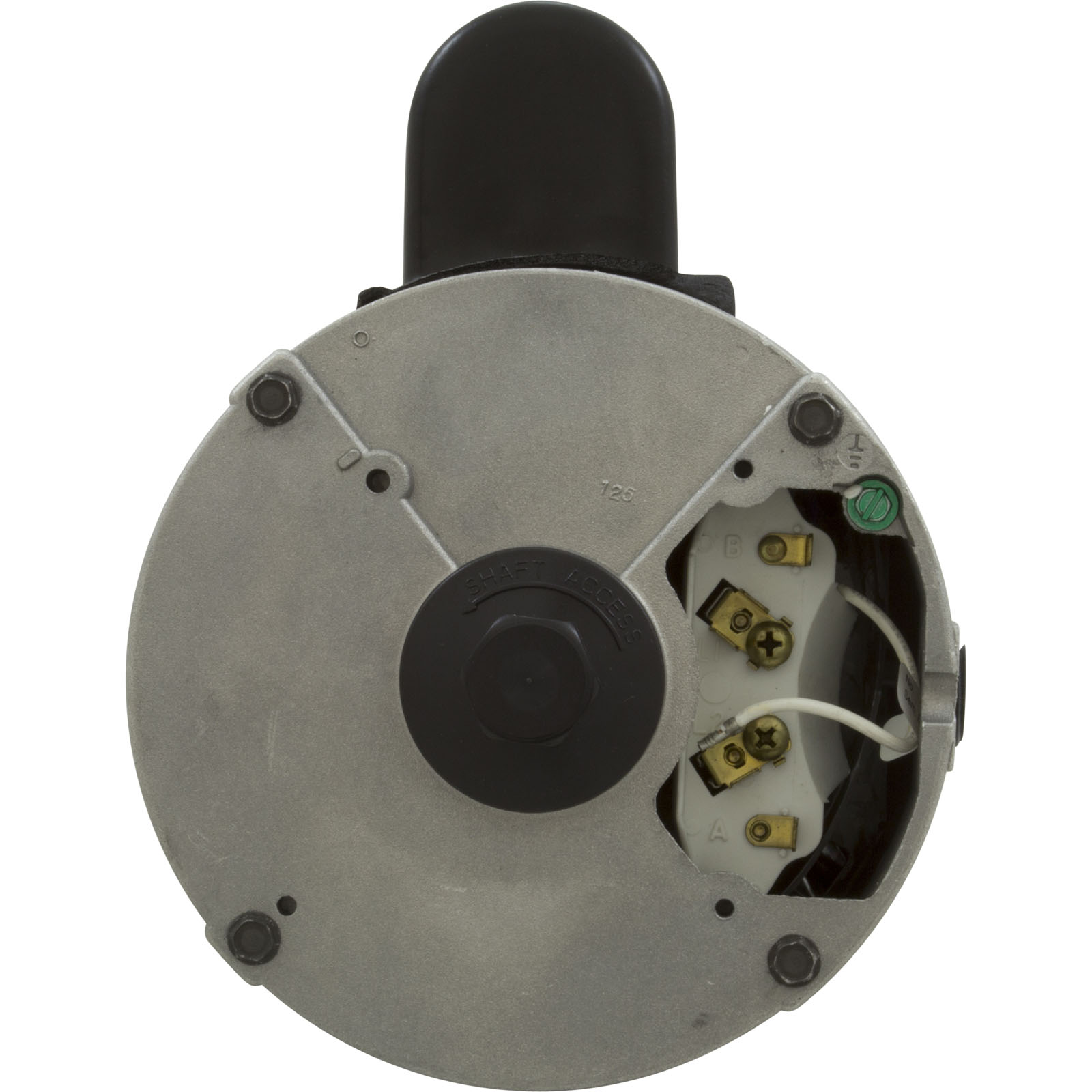

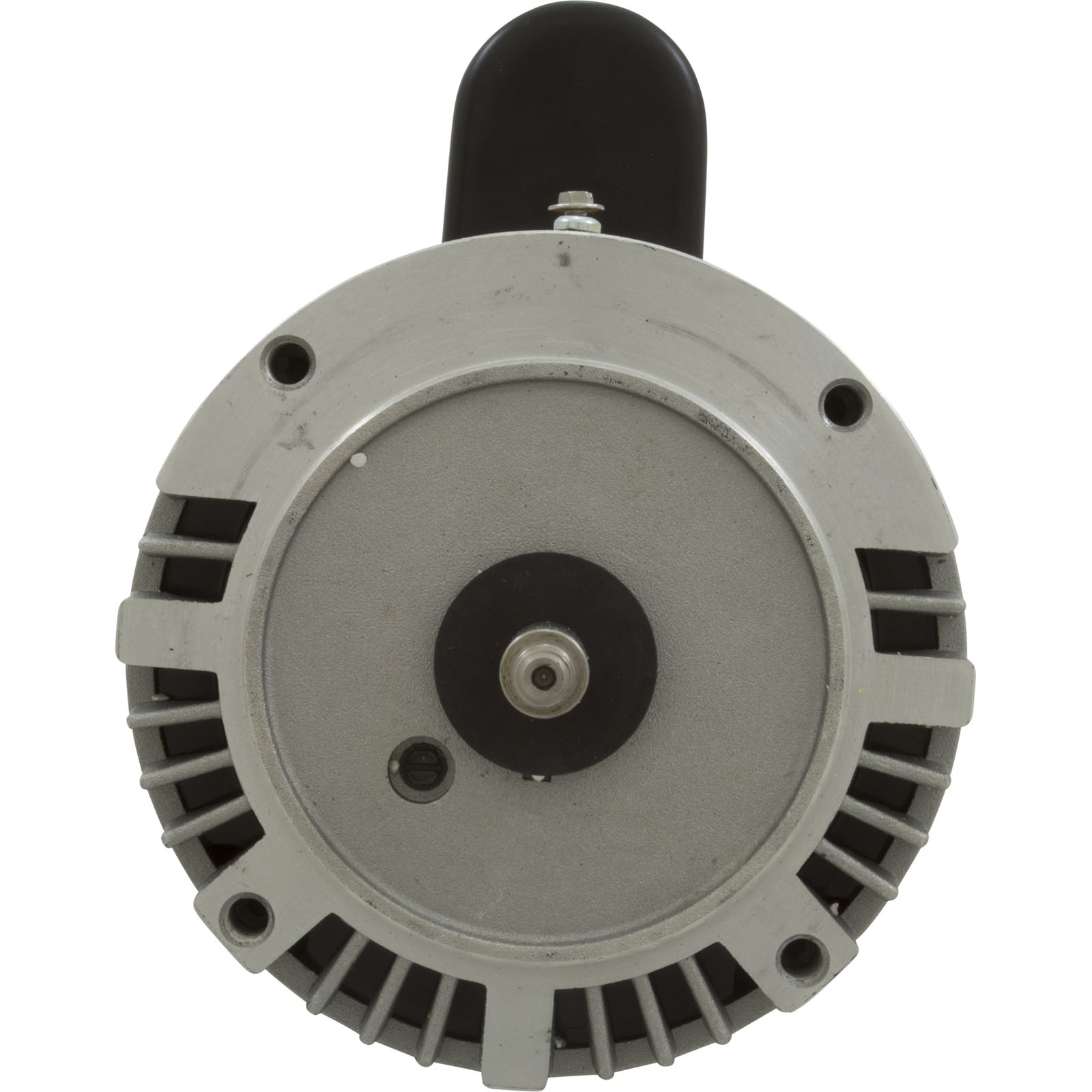

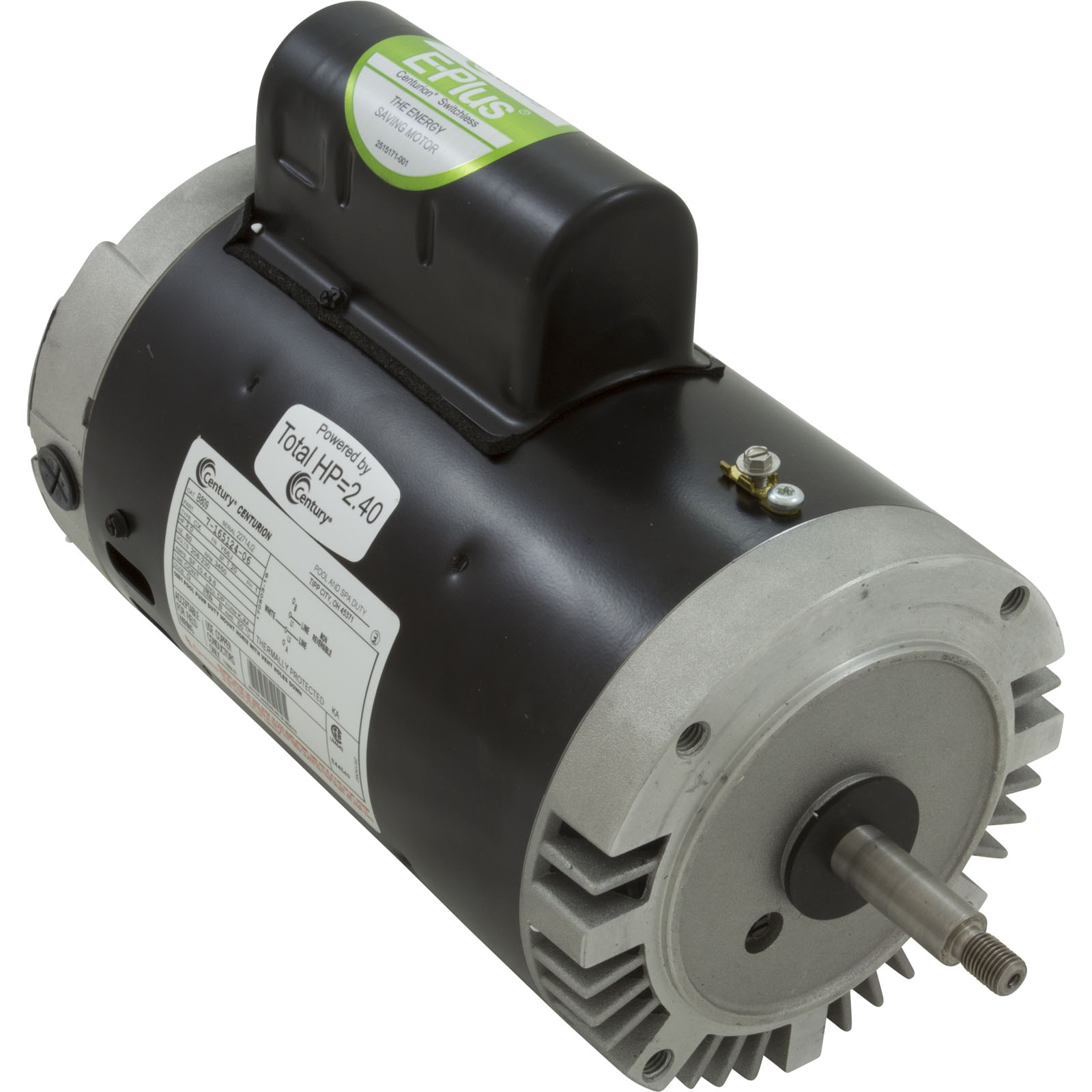

B809 Motor Century2.0 HP 208 V -230 V 1-Speed56Jfr C-Face Thd EE

Manufacturer Part Number: B809

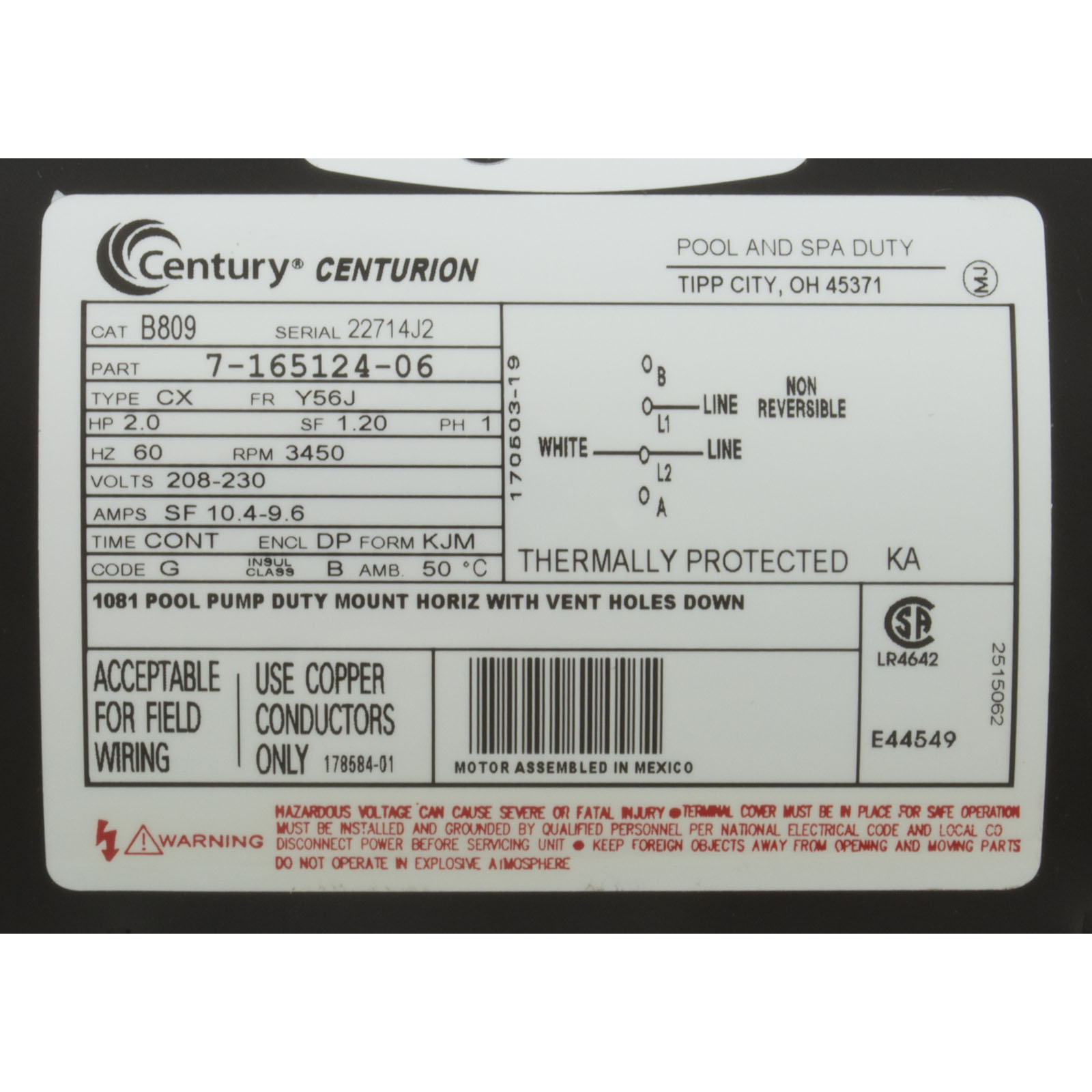

CAT: B809 MODEL: 165124 TYPE: CX FR: Y 56 J HP: 2.0 SF: 1.20 PH: 1 HZ: 60 RPM: 3450 ROT: CW VOLTS: 208-230 AMPS: MAX AMPS: SF AMPS: 15.0-13.6 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: G INSUL CLASS: B AMB.: 50°C Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
