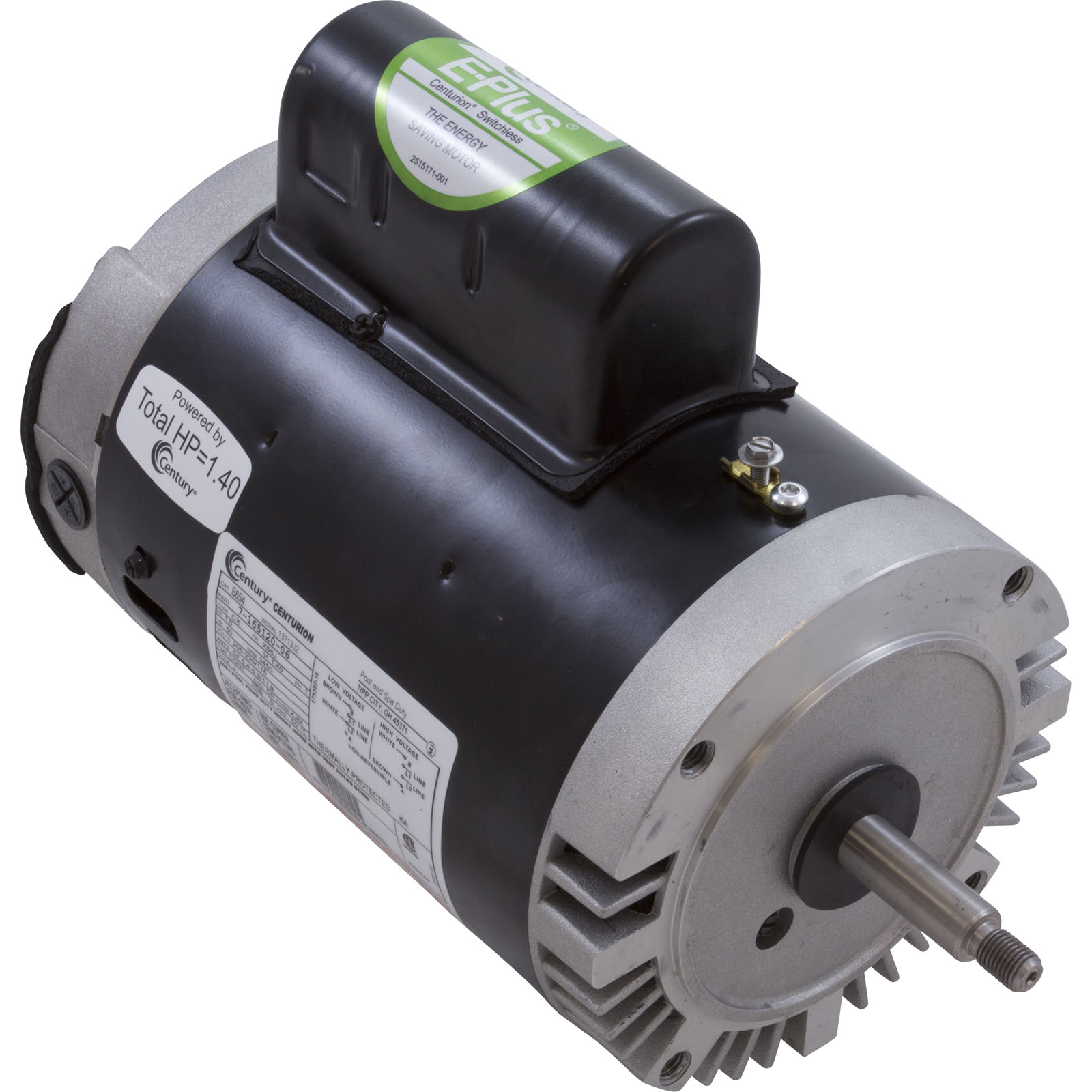

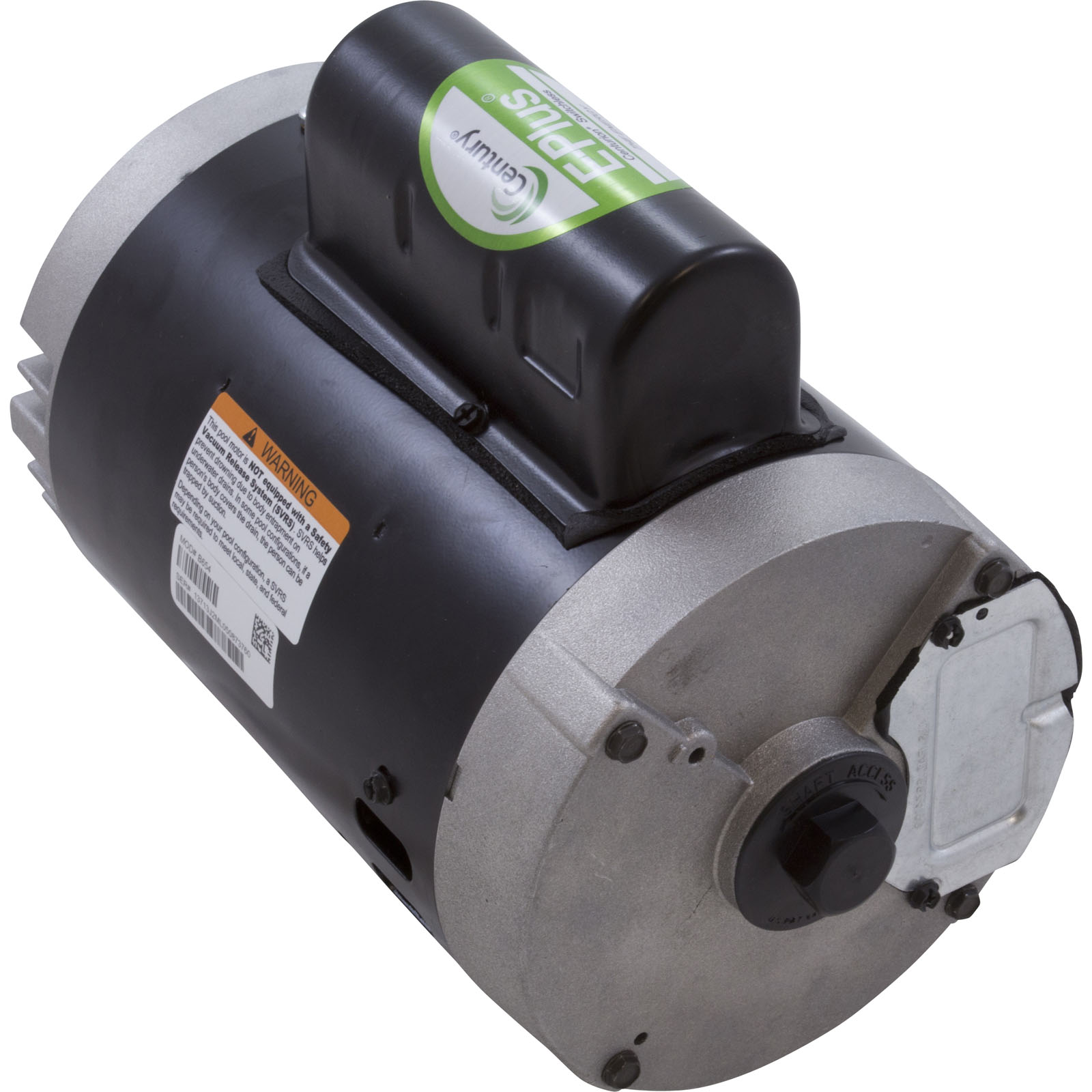

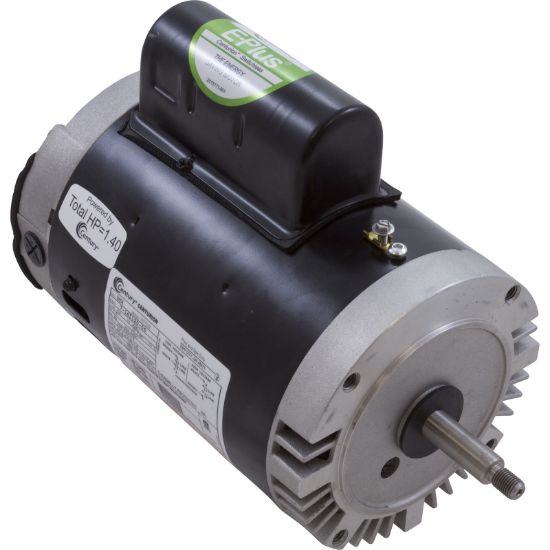

B654 Motor Century1.0 HP 115 V /230 V 1-Speed56Jfr C-Face Thd EE

Manufacturer Part Number: B654

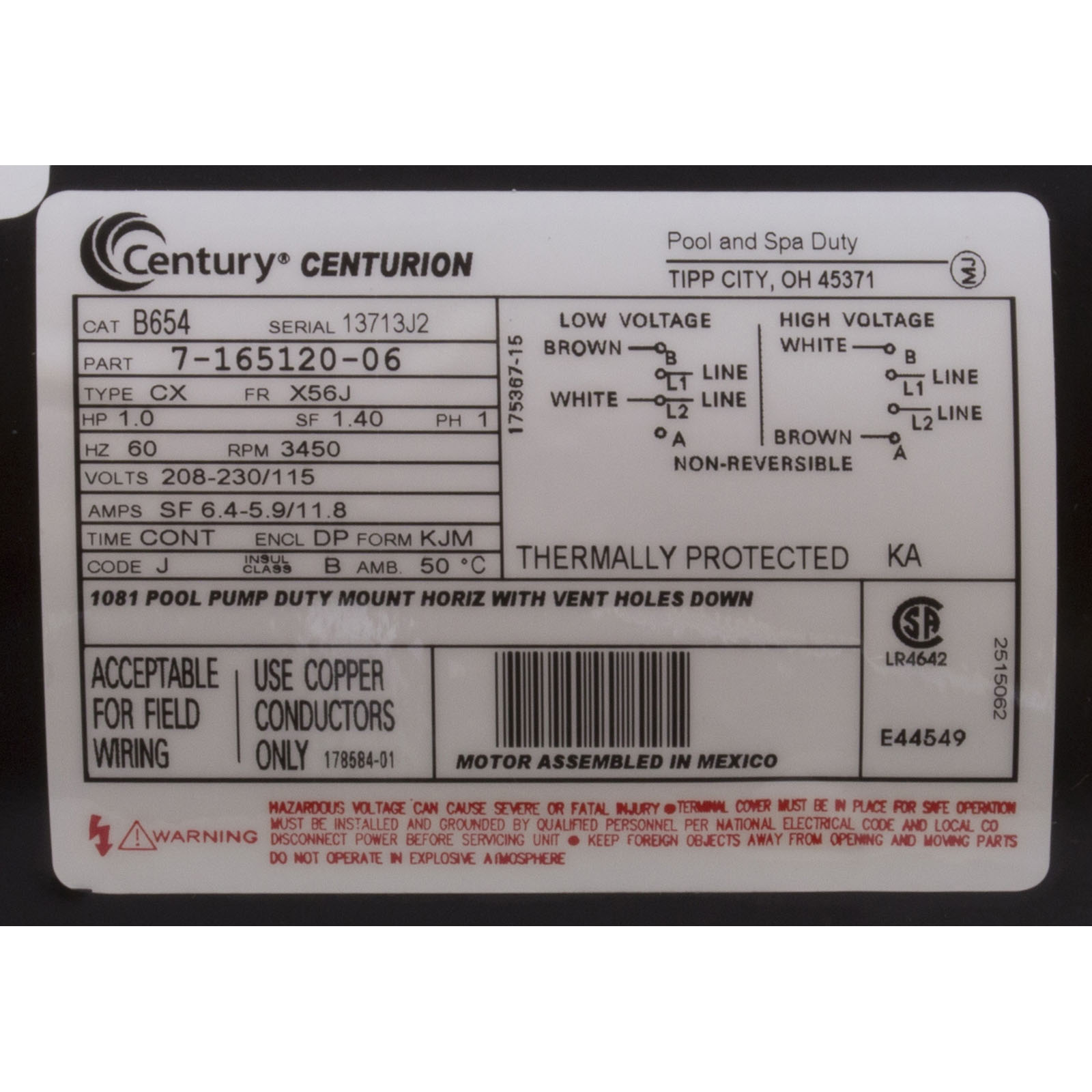

CAT: B654 MODEL: 165120 TYPE: CX FR: X 56 J HP: 1.0 SF: 1.40 PH: 1 HZ: 60 RPM: 3450 ROT: CW VOLTS: 208-230/115 AMPS: MAX AMPS: SF AMPS: 6.4-5.9/11.8 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: J INSUL CLASS: B AMB.: 50°C Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
