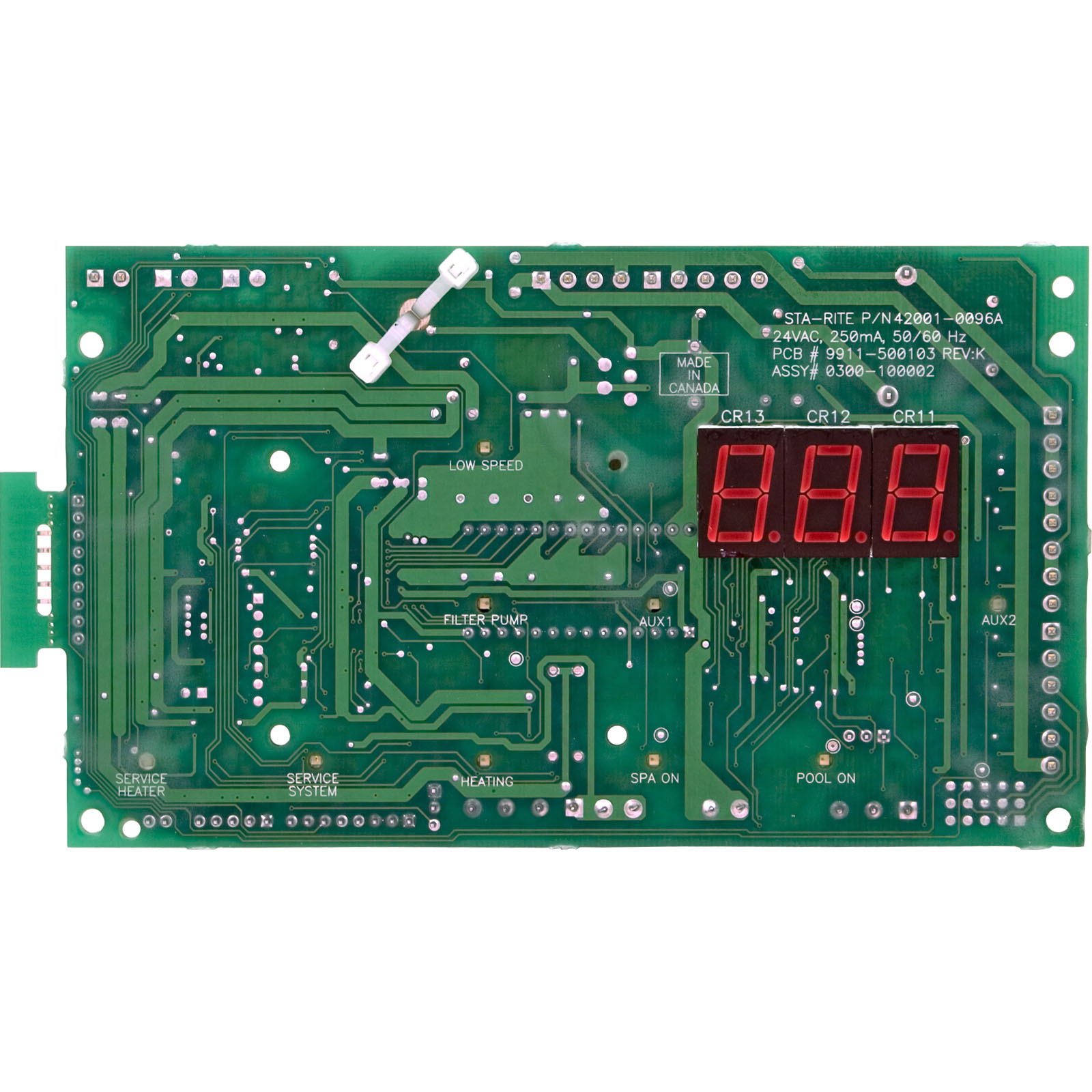

42001-0096S PCB Pentair Max-E-Therm HD Control

Manufacturer Part Number: 42001-0096S

This board (42001-0096S) has been replaced by 47-102-1334 (42002-0007S) which is a 6 pin board. 42001-0096S is a 9 pin board used on a very rare Sta-Rite MX remote heater. If you do not have the rare Sta-Rite MX heater the 42002-0007s board will work. With the pins on the right side when mounted, attach the ribbon cable starting from the bottom up, leaving the top 3 pins unconnected.

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
