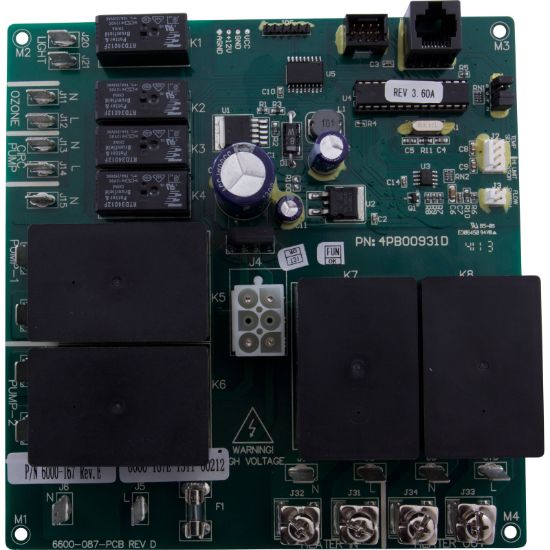

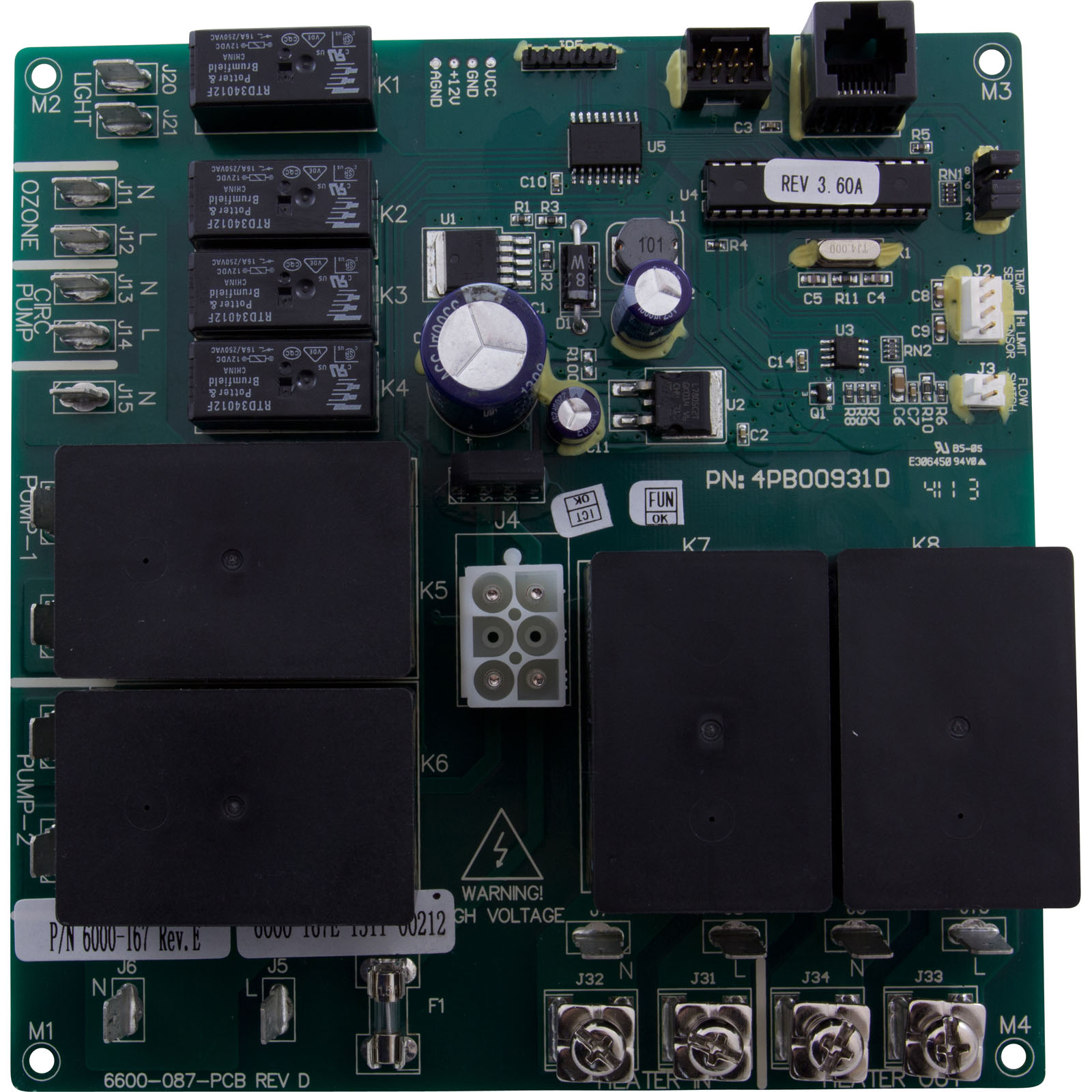

6600-726 PCB Sundance J-LX/J-LXLUniversal (w/Circ Pump Only)

Manufacturer Part Number: 6600-726

Replaces Sundance 6600-288. Also replaces 6000-167. Includes Micro Chip 3.61A. For 2-Pump systems. This board operates a circulation pump. If the spa does not have a circulation pump, then use 59-453-1026. Jumper settings are as follows: Jumper 2 - On 1 Pin - 15A, On 2 Pins - 50A Jumper 4 - On 1 Pin - 1 pump, On 2 Pins - 2 pumps Jumper 6 - Used along with Jumper 2 Jumper 8 - On 1 Pin - Fahrenheit temp display, On 2 Pins - Celsius temp display

Need help identifying the correct part? Email [email protected] and attach clear pictures of the old part, equipment label and complete unit.
